KCB Gear Pump Manufacturer

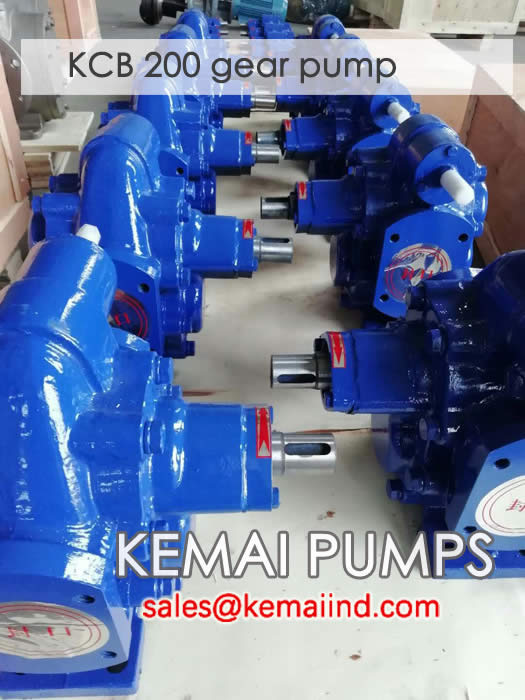

China Kemai is KCB gear pump manufacturer, Main manufacture KCB 18.3;KCB 33.3;KCB 55; KCB 83.3; KCB 135; KCB 200; KCB 300; KCB 483.3; KCB 633; KCB 960; KCB 1200; KCB 1600; KCB 1800; KCB 2500; KCB 3800; KCB 5400; KCB 7600; KCB 9600 Model gear pump.

Gear pump as the mainstream of the fluid transport machinery gear pump model also has a lot of, today KEMAI gear pump for friends to facilitate the selection of KCB gear pump and 2CY gear pump.

KCB gear pump Product Profile:

2CY, KCB gear oil transfer pump:

1. This pump is suitable for conveying all kinds of lubricated liquids.
   The temperature is not higher than 70℃, if the high temperature is 200℃, contact with the unit can be matched with high temperature resistant materials,
   The viscosity is 5× 10-5 ~ 1.5× 10-3m2 /s.
2. This pump is not suitable for conveying corrosive, hard particles or fibers, highly volatile or low flash point liquid, such as gasoline, stupid, etc.

KCB gear pump peculiarity:

1.2CY and KCB gear oil pumps are simple and compact in structure.
Easy to use and maintain,
2.2CY and KCB gearwheel oil pumps have good self-priming property, so it is not necessary to fill liquid before each pump opening.
3.2 The lubrication of 2CY and KCB gear oil pumps is achieved automatically by conveying liquids.
Therefore, there is no need to add lubricating fluid for daily work.

1. The use of elastic couplings to transmit power can compensate for the small deviation caused by installation.
   In the pump work by the inevitable hydraulic impact, can play a larger buffer role.

Gear pump structure
2CY, KCB gear oil pump in the pump body is equipped with a pair of rotary gears, an active, a passive, depending on the two gears meshing each other, the pump the whole working chamber is divided into two independent parts.
A is the suction cavity and B is the discharge cavity.
When the pump is running, the active gear drives the passive gear to rotate. When the gear is toothed from meshing to disengaging, the suction side (A) will form A local vacuum and the liquid will be inhaled.
The inhaled liquid is filled with each tooth valley of the gear and brought to the discharge side (B). When the gear enters into mesh, the liquid is extruded, forming a high-pressure liquid and discharged out of the pump through the discharge outlet of the pump.

Features of KCB gear pump:

1. 2CY, KCB gear oil pump is a horizontal rotary pump, which is mainly composed of pump body, gear, bearing housing, safety valve, bearing and sealing device.
2. The pump body and bearing pedestal are gray cast iron, and the gears are made of high-quality carbon steel, or copper or stainless steel according to the special needs of users.
3. There is a stuffing box on the bearing seat for axial sealing.
   2CY100/3, 2CY120/3, 2CY150/3, KCB 300-960 pumps adopt skeleton sealing device.
   Bearing adopts single row radial ball bearing.
   Model KCB-18.3 ~ 83.3 pump is composed of three oil-resistant rubber rings and a retainer ring with intermediate lining. Two nuts on the pressing cover are adjusted to adjust the degree of sealing. The bearing is made of copper powder oil-bearing.
   In addition, this series of pumps can be filled with flexible graphite packing with good elasticity, high and low temperature resistance, stable chemical properties and self-lubricating properties.
4. There is a safety valve in the pump. When the pump or discharge pipe fails or the discharge valve is closed completely by mistake, the safety valve will automatically open and discharge part or all of the high-pressure liquid back to the low-pressure chamber, so as to play a role of safety protection for the pump and pipeline.
5. Connect the drive motor directly with flexible coupling and install it on the common cast iron chassis.

Main USES of pump:
1, KCB, 2CY series gear oil pump is suitable for conveying all kinds of oils, such as heavy oil, diesel oil, lubricating oil, with copper gear can convey low internal point liquid, such as gas oil, benzene, etc., we also do stainless steel gear pump can convey beverages and corrosive liquids.
2, KCB, 2CY series gear oil pump is not suitable for containing hard particles or fibers, the applicable viscosity is 5* 10-5 ~1.5*103m2/s temperature is not high is 70℃, if you need to transport high temperature liquid, please use high temperature resistant gear pump, can transport below 300℃ liquid.
