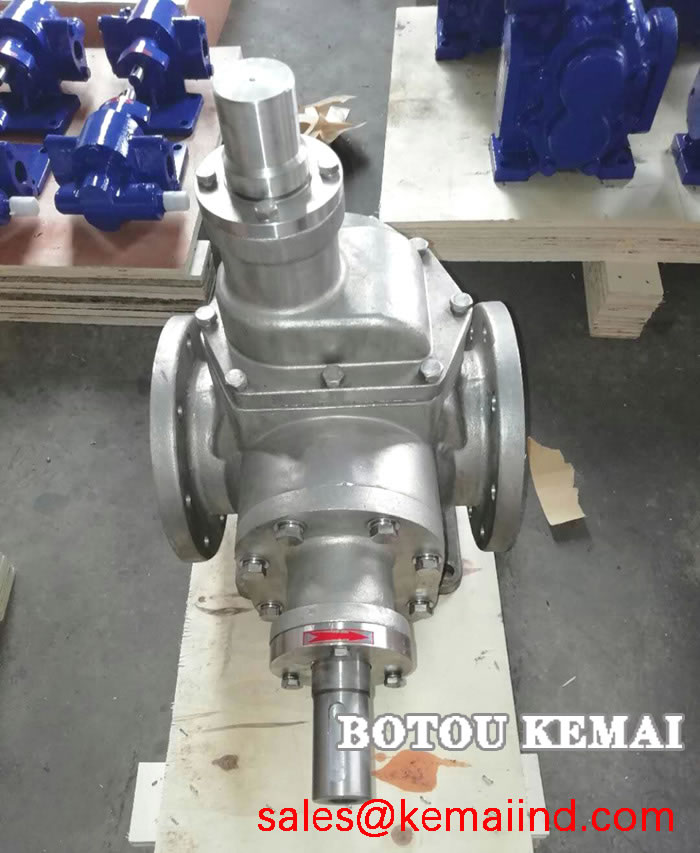

Ycb gear pump is mainly composed of gear, bearing, bearing sleeve, pump valve body, pump bonnet, shaft end seal, etc.
Its gear adopts double arc sine curve tooth shape manufacture.
The outstanding advantage of ycb pump and involute gear is that there is no relative sliding of the tooth profile in the process of gear engagement, so there is no wear on the tooth surface, smooth operation, no trapped fluid, low noise, long life, higher efficiency.
The pump got rid of the traditional design constraints, so that the gear pump in the design, production and use into a new field.
YCB gear pump is provided with a safety valve as load protection. The total backflow pressure of the safety valve is 1.5 times of the rated discharge pressure of the pump.
Can also be in the allowable discharge pressure range according to the actual needs of another adjustment.
However, please note that this safety valve cannot be used as a pressure reducing valve for a long time.
YCB gear pump is suitable for conveying lubricating oil without solid particles and fiber, non-corrosive, temperature is not higher than 180℃, viscosity of 5-1500 CST or other liquids similar to lubricating oil.
And for hydraulic transmission systems.
Flow rate :0.6-60 m3 / h, pressure 0.6-1.6Mpa.
Equipped with a protective valve as load protection, the total backflow pressure of the protective valve is 1.5 times of the rated discharge pressure of the pump.
It can be used as transmission and booster pump in oil transportation system.
In the fuel system can be used as transport, pressure, injection fuel pump;
In the hydraulic transmission system can be used to provide hydraulic power hydraulic pump;
In the industrial field, can be used for lubricating oil pump;
This series of gear pump mainly consists of gear, shaft, pump body, protective valve and shaft end seal.
The gear has high hardness and strength after heat treatment, and is installed in a replaceable shaft sleeve.
The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump is working.
YCB gear pump is equipped with a protective valve as load protection. The total backflow pressure of the protective valve is 1.5 times of the rated discharge pressure of the pump. It can also be adjusted according to the actual needs within the allowable discharge pressure range.
However, it should be noted that this protection valve cannot be used for the long-term work of the pressure reducing valve.
YCB gear pump material has stainless steel and cast iron, the seal has mechanical seal and packing seal, according to the actual working conditions can choose the material and seal.
If your discharge pressure is low, you can choose KCB gear pump.The price will go down a bit.
