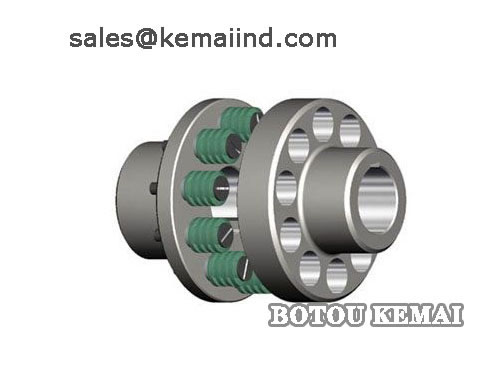

Pin bush type flexible coupling manufacturer in china from KEMAI IND.TL series flexible pin bush shaft coupling often use for motor, pumps,fans…
TL type pin bush type flexible coupling working Temperature:-20℃~+70℃.
Model: TL1 TL2 TL3 TL4 TL5 TL6 TL7 TL8 TL9 TL10 TL11 TL12 TL13.
Note: Make shaft hole diameter and shaft hole length according to customer requirements.

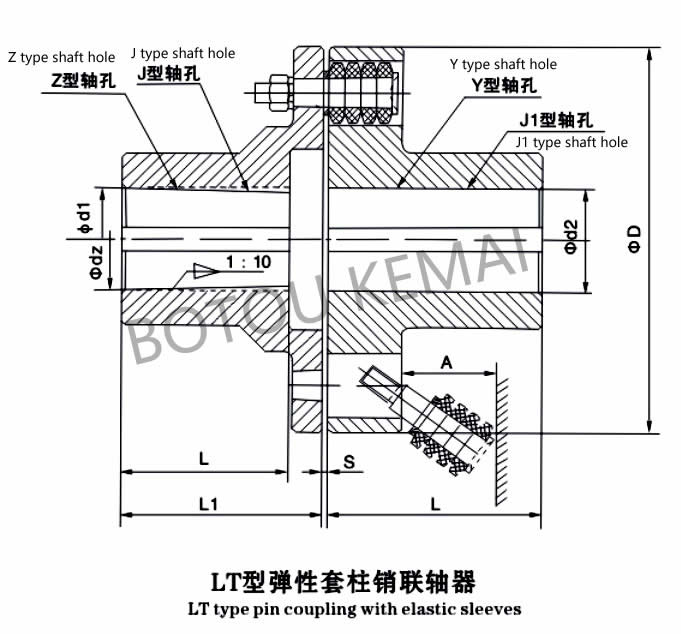

Here are TL pin bush flexible coupling size:
| Model | nominal torque | Max speed | shaft hole diameter | shaft hole length | SIZE | weight | |||
| Tn | [n] | d,d1,dz | Y | J,J1,Z | D | S | A | kg | |
| N.m | r/min | L | L1 | ||||||
| TL1 | 6.3 | 8800 | 9～14 | 20～32 | 14～20 | 71 | 3 | 18 | 1.2 |
| TL2 | 16 | 7600 | 12～19 | 32～42 | 20～42 | 80 | 3 | 18 | 1.64 |
| TL3 | 31.5 | 6300 | 16～25 | 42～62 | 30～62 | 95 | 4 | 35 | 4.9 |
| TL4 | 63 | 5700 | 20～32 | 52～82 | 38～82 | 106 | 4 | 35 | 2.4 |
| TL5 | 125 | 4600 | 25～40 | 62～112 | 44～112 | 130 | 5 | 45 | 8.36 |
| TL6 | 250 | 3800 | 32～50 | 82～112 | 60～112 | 160 | 5 | 45 | 10.36 |
| TL7 | 500 | 3600 | 40～65 | 112～142 | 84～142 | 190 | 5 | 45 | 15.6 |
| TL8 | 710 | 3000 | 45～80 | 112～172 | 84～172 | 224 | 6 | 65 | 25.4 |
| TL9 | 1000 | 2850 | 50～85 | 112～172 | 84～172 | 250 | 6 | 65 | 30.9 |
| TL10 | 2000 | 2300 | 63～120 | 142～212 | 107～212 | 315 | 8 | 80 | 65.9 |
| TL11 | 4000 | 1800 | 80～140 | 172～252 | 132～252 | 400 | 10 | 100 | 122.6 |
| TL12 | 8000 | 1450 | 100～180 | 212～302 | 167～302 | 475 | 12 | 130 | 218.4 |
| TL13 | 16000 | 1150 | 120～220 | 212～352 | 167～352 | 600 | 14 | 180 | 425.8 |
