GICL Drum Shape Gear Coupling

Home > Gear Coupling > GICL Drum Shape Gear Coupling

Item No.: None

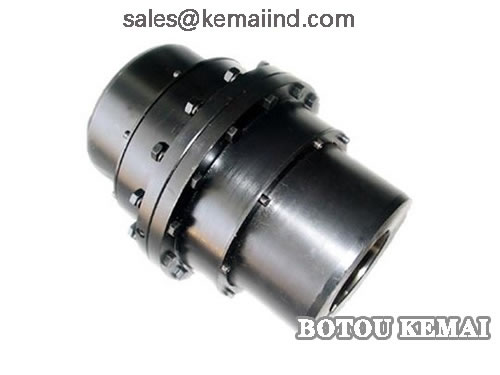

GICL drum shape gear coupling sealed end is separated type.Gears space width is big, the allowable radial displacement is big.And can connect Y, J1-type shaft hole.

Description

GICL Drum Gear Coupling Applications:

1.Shaft Hole Diameter: 16mm – 630mm
2.Shaft Hole Length (Y): 42mm – 800mm
3.Applications: Metallurgy, mining, lifting and transportation industries, petroleum, chemical, general machinery and other heavy machinery shaft drive.

Model:

GICL1 GICL2 GICL3 GICL4 GICL5 GICL6 GICL7 GICL8 GICL9 GICL10.
GICL11 GICL12 GICL13 GICL14 GICL15 GICL16 GICL17 GICL18 GICL19 GICL20.
GICL21 GICL22 GICL23 GICL24 GICL25 GICL26 GICL27 GICL28 GICL29 GICL30.

Drum Shape Gear Coupling Data Sheet And Drawing:

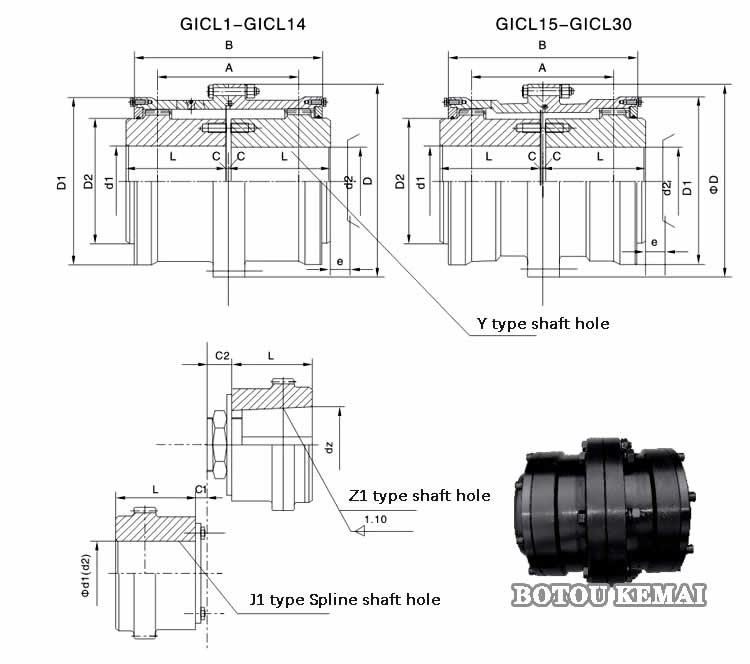

GICL GEAR COUPLING DRAWING

Model	Nominal torque (KN·m)	Speed[n] (r/min)	bore diameter d1、d2、dz	bore length		D	D1	D2	B	A	C	C1	C2	e	rotational inertia (kg·m2)	Weight (kg)
				Y	Z1,J
				L
GICL1	630	4000	16 18 19	42	–	125	95	60	115	75	20	–	–	30	0.009	5.9
			20 22 24	52	38						10	–	24
			25 28	62	44						2.5	–	19
			30 32 35 38	82	60							15	22
GICL2	1120	4000	25 28	62	44	144	120	75	135	88	10.5	–	29	30	0.02	9.7
			30 32 35 38	82	60						2.5	12.5	30
			40 42 45 48	112	84							13.5	28
GICL3	2240	4000	30 32 35 38	82	60	174	140	95	155	106	3	24.5	25	30	0.047	17.2
			40 42 45 48 50 55 56	112	84							17	28
			60	142	107								35
GICL4	3550	3600	32 35 38	82	60	196	165	115	178	125	14	37	32	30	0.091	24.9
			40 42 45 48 50 55 56	112	84						3	17	28
			60 63 65 70	142	107								35
GICL5	5000	3300	40 42 45 48 50 55 56	112	84	224	183	130	198	142	3	25	28	30	0.167	38
			60 63 65 70 71 75	142	107							20	35
			80	172	132							22	43
GICL6	7100	3000	48 50 55 56	112	84	241	200	145	218	160	6	35	35	30	0.267	48.2
			60 63 65 70 71 75	142	107						4	20	35
			80 85 90	172	132							22	43
GICL7	10000	2680	60 63 65 70 71 75	142	107	260	230	160	244	180	4	35	35	30	0.453	68.9
			80 85 90 95	172	132							22	43
			100	212	167								48
GICL8	14000	2500	65 70 71 75	142	107	282	245	175	264	193	5	35	35	30	0.646	83.3
			80 85 90 95	172	132							22	43
			100 110	212	167								48
GICL9	18000	2350	70 71 75	142	107	314	270	200	284	208	10	45	45	30	1.036	110
			80 85 90 95	172	132							22	43
			100 110 120 125	212	167						5		49
GICL10	31500	2150	80 85 90 95	172	132	346	300	220	330	249	5	43	43	30	1.88	157
			100 110 120 125	212	167							22	49
			130 140	252	202							29	54
GICL11	40000	1880	100 110 120 125	212	167	380	330	260	360	40	6	29	49	40	3.28	217
			130 140 150	252	202								54
			160	302	242								64
GICL12	56000	1680	120 125	212	167	442	380	290	416	313	6	57	57	40	5.08	305
			130 140 150	252	202							29	55
			160 170 180	203	242								68
GICL13	80000	1530	140 150	252	202	482	420	320	476	364	7	54	57	40	10.06	419
			160 170 180	302	242							32	70
			190 200	352	282								80
GICL14	112000	1300	160 170 180	302	242	520	465	360	532	415	8	42	70	40	16.774	594
			190 200 220	352	282							32	80
GICL15	160000	1180	190 200 220	352	282	580	510	400	556	429	10	34	80	40	26.55	783
			140 250									38	–
GICL16	250000	1000	200 220	352	282	680	595	465	640	501	10	58	80	50	52.22	1131
			240 250 260	410	330							38	–
			280	470	380							38
GICL17	280000	980	220	352	282	720	645	495	672	512	10	74	80	50	69	1305
			240 250 260	410	330							39	–
			280 330	470	380
GICL18	355000	900	240 250 260	410	330	775	675	520	702	524	10	46	–	50	96.19	1626
			280 300 320	470	380							41
GICL19	450000	830	260	410	330	815	715	560	744	560	10	57	–	50	115.6	1773
			280 300 320	470	380							41
			340	550	450
GICL20	500000	790	280 300 320	470	380	855	755	585	786	595	13	44	–	50	167.41	2263
			340 360	550	450
GICL21	630000	750	300 320	470	380	915	795	620	808	611	13	59	–	50	215.7	2593
