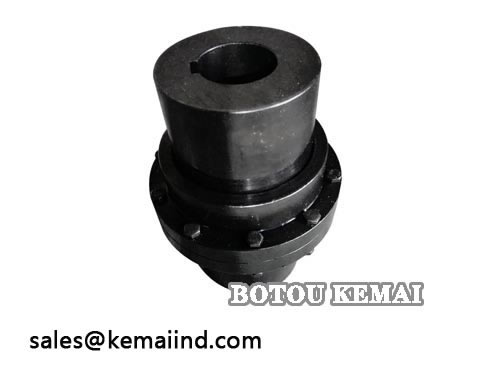

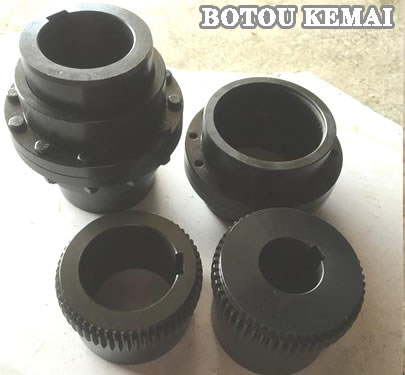

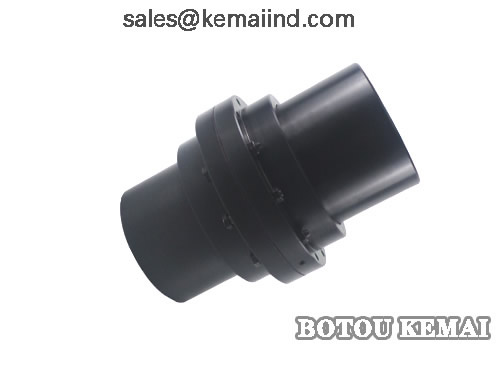

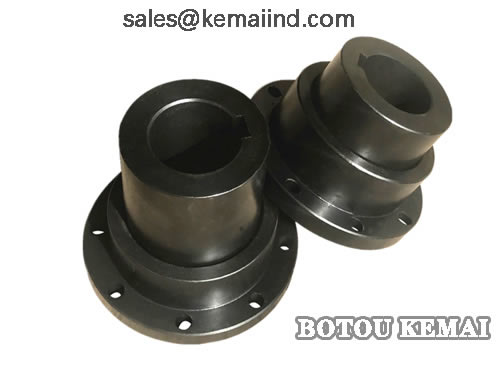

Drum Type Gear Coupling GIICL Model:GIICL1 GIICL2 GIICL3 GIICL4 GIICL5. GIICL6 GIICL7 GIICL8 GIICL9 GIICL10.GIICL11 GIICL12 GIICL13 GIICL14.GIICL15 GIICL16 GIICL17 GIICL18.GIICL19 GIICL20 GIICL21 GIICL22 GIICL23.GIICL24 GIICL25.
GIICL Gear coupling has compact structure, large bearing capacity and high efficiency. Widely used in low speed and heavy load conditions. For example: mining machinery, metallurgy, paper, gas turbine shaft drive.
· Shaft Hole Diameter: 16mm ~ 1040mm.
· Shaft Hole Length: 42mm ~ 1100mm.
. Norminal Torque: 0.4kN. M ~ 4500kN. M.
· Allowed Rotation Speed: 4000rpm ~ 460rpm.
Model | Nominal torque (KN. m) |
Allowable speed (rpm) |
bore diameter | Bore length L(mm) | Size (mm) | Moment of inertia (Kg. m*2) |
lubricating grease (ml) |
Weight (kg) |
|||||||
d1 d2 | Y
J1 Z1 |

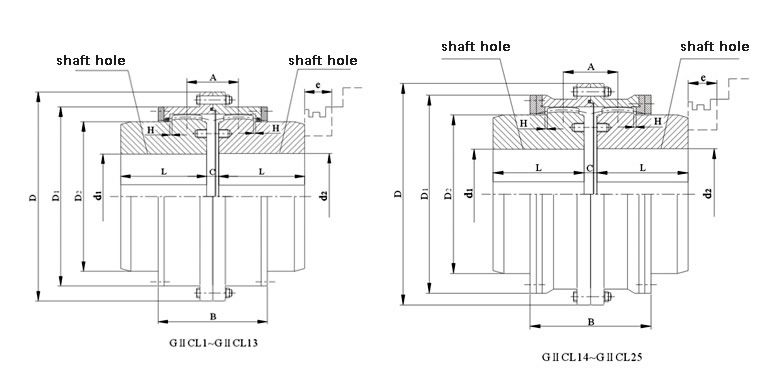

D | D1 | D2 | C | H | A | B | e | ||||||
GIICL1 | 0.4 | 4000 | 16~35 | 38~82 | 103 | 71 | 50 | 8 | 2 | 36 | 76 | 38 | 0.00375 | 51 | 5.1 |
GIICL2 | 0.71 | 4000 | 20~45 | 38~112 | 115 | 83 | 60 | 8 | 2 | 42 | 88 | 42 | 0.00575 | 70 | 6.2 |
GIICL3 | 1.12 | 4000 | 22~56 | 38~112 | 127 | 95 | 75 | 8 | 2 | 44 | 90 | 42 | 0.00675 | 68 | 8.6 |
GIICL4 | 1.8 | 4000 | 38~65 | 60~142 | 149 | 116 | 90 | 8 | 2 | 49 | 98 | 42 | 0.0245 | 87 | 14.5 |
GIICL5 | 3.15 | 4000 | 40~56 | 84~142 | 167 | 134 | 105 | 10 | 2.5 | 55 | 108 | 42 | 0.0433 | 125 | 19.6 |
GIICL6 | 5 | 4000 | 45~90 | 84~172 | 187 | 153 | 125 | 10 | 2.5 | 56 | 110 | 42 | 0.0848 | 148 | 31.2 |
GIICL7 | 7.1 | 3750 | 50~105 | 84~212 | 204 | 170 | 140 | 10 | 2.5 | 60 | 118 | 42 | 0.0378 | 175 | 47.5 |
GIICL8 | 10 | 3300 | 55~115 | 84~212 | 230 | 186 | 155 | 12 | 3 | 67 | 142 | 147 | 0.075 | 268 | 60.2 |
GIICL9 | 16 | 3000 | 60~135 | 107~252 | 256 | 212 | 180 | 12 | 3 | 69 | 146 | 47 | 0.151 | 310 | 95.8 |
GIICL10 | 22.4 | 2650 | 65~150 | 107~252 | 287 | 239 | 200 | 14 | 3.5 | 78 | 164 | 47 | 0.241 | 472 | 119 |
GIICL11 | 35.5 | 2350 | 70~175 | 107~302 | 325 | 276 | 235 | 14 | 3.5 | 81 | 170 | 47 | 1.588 | 550 | 189 |
GIICL12 | 50 | 2100 | 75~200 | 107~352 | 362 | 313 | 270 | 16 | 4 | 89 | 190 | 49 | 3.055 | 695 | 285 |
GIICL13 | 71 | 1850 | 150~225 | 202~352 | 412 | 350 | 300 | 18 | 4.5 | 98 | 208 | 49 | 4.918 | 1019 | 360 |
GIICL14 | 112 | 1650 | 170~250 | 242~410 | 462 | 420 | 335 | 22 | 5.5 | 172 | 296 | 63 | 9.725 | 3900 | 544 |
GIICL15 | 180 | 1500 | 190~285 | 282~470 | 512 | 470 | 380 | 22 | 5.5 | 182 | 316 | 63 | 17.45 | 4000 | 786 |
GIICL16 | 250 | 1300 | 220~320 | 282~470 | 580 | 522 | 430 | 28 | 7 | 198 | 354 | 67 | 29.1 | 4500 | 1027 |
GIICL17 | 355 | 1200 | 250~365 | 330~550 | 644 | 582 | 490 | 28 | 7 | 209 | 364 | 67 | 53.725 | 4900 | 1532 |
GIICL18 | 500 | 1050 | 280~400 | 380~650 | 726 | 658 | 540 | 28 | 8 | 222 | 430 | 75 | 99.5 | 7000 | 2278 |
GIICL19 | 710 | 950 | 300~460 | 380~650 | 818 | 748 | 630 | 32 | 8 | 232 | 440 | 75 | 175.5 | 8900 | 3026 |
GIICL20 | 1000 | 800 | 360~540 | 450~800 | 928 | 838 | 720 | 32 | 10.5 | 247 | 470 | 75 | 360.75 | 11000 | 4430 |
GIICL21 | 1400 | 750 | 400~600 | 540~800 | 1022 | 928 | 810 | 40 | 11.5 | 255 | 490 | 75 | 561.5 | 13000 | 6152 |
GIICL22 | 1800 | 650 | 450~680 | 540~900 | 1134 | 1036 | 915 | 40 | 13 | 262 | 510 | 75 | 904.75 | 16000 | 7738 |
GIICL23 | 2500 | 600 | 530~770 | 680~900 | 1282 | 1178 | 1030 | 50 | 14.5 | 299 | 580 | 80 | 1725 | 28000 | 11553 |
GIICL24 | 3550 | 550 | 560~850 | 680~1000 | 1428 | 1322 | 1175 | 50 | 16.5 | 317 | 610 | 80 | 3131.75 | 33000 | 16615 |
GIICL25 | 5000 | 460 | 670~1040 | 780~1100 | 1644 | 1538 | 1390 | 50 | 19 | 325 | 620 | 80 | 7198.25 | 43000 | 27797 |
