Half Gear Coupling

Item No.: None

Half gear coupling size & Specification. Half gear flexible coupling shaft bore diameter 16~1000mm;The length of the shaft bore 40~1000mm;Model:HGC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25.

Description

Summary:

1.Gear type coupling has compact structure and large bearing capacity.
2.Wide range of speed, reliable work.
3.It is used in mining, hoisting, shipping and other industries.

Half Gear Coupling Model:

HGC10- bore diameter X bore length – bore diameter X bore length (mm)
HGC8-80X142-70X100
HGC:Full Gear Coupling
8: The size of the code
one side: bore diameter80mm ; bore length 142mm
other side: bore diameter 70mm ; bore length 100mm
Please indicate which side has gears.

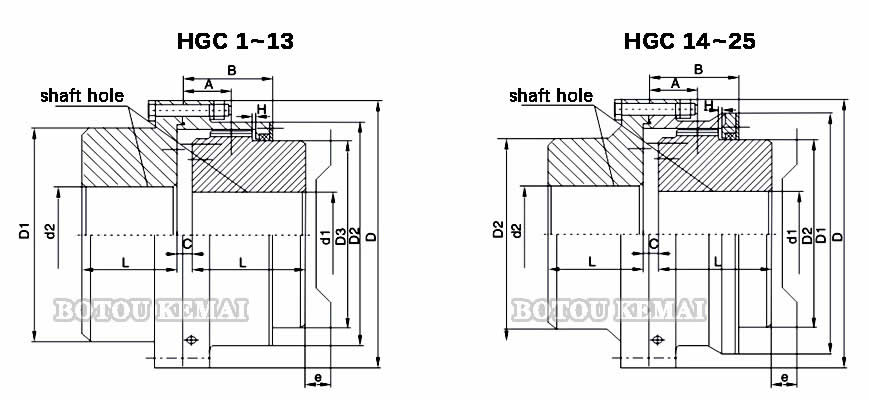

Half Gear Coupling Size

Specification

Type	Nominal torque	Max speed	Bore diameter	Bore length		D	D1	D2	D3	C	H	A	B	e
	Tn	[n]	d1,d2	L
	/N·m	/r·min-1		Y	J1
HGC1	400	4000	16,18,19	42	–	103	71	71	50	8	2	18	38	38
			20,22,24	52	38
			25,28	62	44
			30,32,35,38*	82	60
			40,42,45,48,50*	112	84
HGC2	710	4000	20,22,24	52	38	115	83	83	60	8	2	21	44	42
			25,28	62	44
			30,32,35,38*	82	60
			40,42,45,48,50,55,56	112	84
			60*	142	107
HGC3	1120	4000	22,24	52	38	127	95	95	75	8	2	22	45	42
			25,28	62	44
			30,32,35,38	82	60
			40,42,45,48,50,55,56	112	84
			60,63,65,70	142	107
HGC4	1800	4000	38	82	60	149	116	116	90	8	2	24.5	49	42
			40,42,45,48,50,55,56	112	84
			60,63,65,70,71,75*	142	107
			80*	172	132
HGC5	3150	4000	40,42,45,48,50,55,56	112	84	167	134	134	105	10	2.5	27.5	54	42
			60,63,65,70,71,75	142	107
			80,85,90*	172	132
HGC6	5000	4000	45,48,50,55,56	112	84	187	153	153	125	10	2.5	28	55	42
			60,63,65,70,71,75	142	107
			80,85,90,95*	172	132
			100,(105)	212	167
HGC7	7100	3750	50,55,56	112	84	204	170	170	140	10	2.5	30	59	42
			60,63,65,70,71,75	142	107
			80,85,90,95	172	132
			100,(105),110,(115)*	212	167
HGC8	1000	3300	55,56	112	84	230	186	186	155	12	3	33.5	71	47
			60,63,65,70,71,75	142	107
			80,85,90,95	172	132
			100,110,(115),120,125	212	167
HGC9	16000	3000	60,63,65,70,71,75	142	107	256	222	212	180	12	3	34.5	37	47
			80,85,90,95	172	132
			100,110,120,125	212	167
			130,(135),140,150	252	202
HGC10	22400	2650	65,70,71,75	142	107	287	239	239	200	14	3.5	39	82	47
			80,85,90,95	172	132
			100,110,120,125	212	167
			130,140,150	252	202
HGC11	35500	2350	110,120,125	212	167	325	250	276	235	14	3.5	40.5	85	47
			130,140,150	252	202
			160,170,(175)	302	342
HGC12	50000	1850	130,140,150	252	202	362	286	313	270	16	4	44.5	95	49
			160,170,180	302	242
			190,200	352	282
HGC13	71000	1850	150	252	202	412	322	350	300	18	4.5	49	104	49
			160,170,180 (185)	302	242
			190,200,220,(225)	352	282
HGC14	112000	3300	170,180,(185)	302	282	462	420	335	–	22	5.5	86	148	63
			190,200,220	352	282
			240,250	410	330
HGC15	180000	1500	190,200,220	352	282	512	470	380	–	22	5.5	91	158	63
			240,250,260	410	330
			280,(295)	470	380
HGC16	250000	1300	220	352	282	580	522	430	–	28	7	104.5	177	67
			240,250,260	410	330
			280,300,320	470	380
HGC17	355000	1200	250,260	410	330	644	582	490	–	28	7	99	182	67
			280,(290),300,320	470	380
			340,360,(365)	550	450
HGC18	500000	1050	280,(295),300,320	470	380	726	658	540	–	28	8	111	215	75
			340,360,380	550	450
			400	650	540
HGC19	710000	950	300,320	470	380	818	748	630	–	32	9	116	220	75
			340,(350),360,380,(390)	550	450
			400,420,440,450,460,(470)	650	540
				650	540
HGC20	1000000	800	360,380,(390)	550	450	928	838	720	–	32	10.5	123.5	235	75
			400,420,440,450,460	650	540
			480,500
			530,(540)	800	680
HGC21	1400000	750	400,420,440,450,460	650	540	1022	928	810	–	40	11.5	127.5	245	75
			480,500
			530,560,600	800	680
HGC22	1800000	650	450,460,480,500	650	540	1134	1036	915	–	40	13	131	255	75
			530,560,600,630	800	680
			670,(680)	900	780
HGC23	2500000	600	530,560,600,630	800	680	1282	1178	1030	–	50	14.5	149.5	290	80
			670,(700),710,750,(770)	900	780
HGC24	3550000	550	560,600,650	800	680	1428	1322	1175	–	50	16.5	158.5	305	80
			670,710,750	900	780
			800,850	1000	880
HGC25	5000000	460	670,(700),710,750	900	780	1644	1538	1390	–	50	19	162.5	310	80
			800,850	1000	880
			900,950	–	980
			1000,(1040)	–	1100
