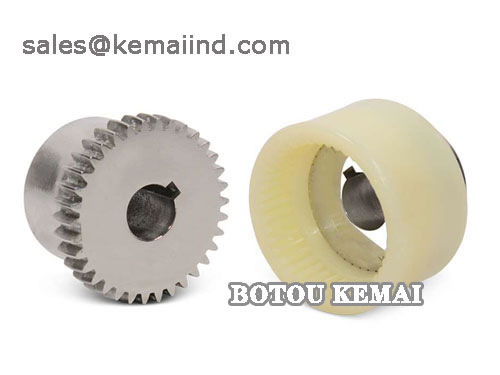

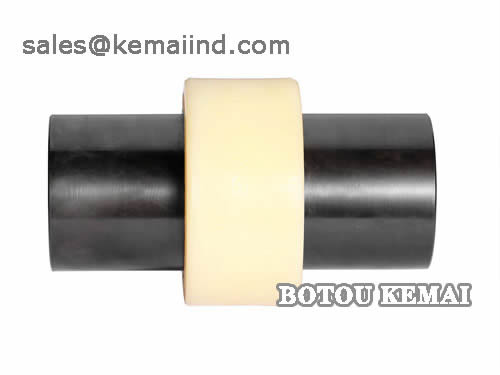

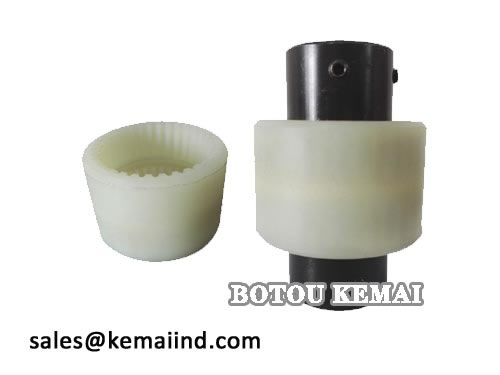

Nylon sleeve gear coupling shaft hole diameter:6~100mm.
Model:NL1 NL2 NL3 NL4 NL5 NL6 NL7 NL8 NNL9 NL10
1.Simple structure, easy maintenance, low noise.Long service life.
2.Working Temperature: -20~+70℃. Torque range: 40N.m~3150N.m. Speed Range:6000~1800r/min.
3.Outer diameter of nylon sleeve: 42~220mm. Outer diameter of nylon sleeve :16~212mm
For example:
NL7- bore diameter X bore length – bore diameter X bore length (mm)
NL7-48X100-45X110
NL:Nylon sleeve Coupling
7: The size of the code
one side: bore diameter 48mm ; bore length 100mm
other side: bore diameter 45mm ; bore length 110mm
| Model | Nominal torque
Tn (N.M) |
Speed
(r/min) |

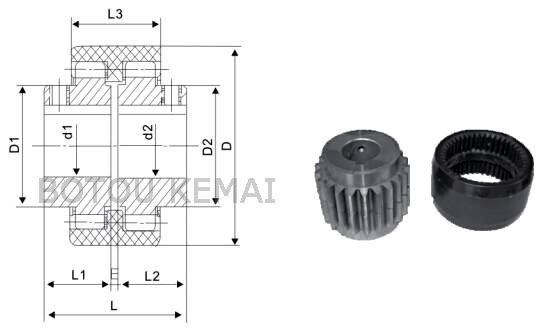

Size (mm) | weight(Kg ) | ||||||
| bore diameter d1 d2 |
bore length
L1 L2 |
L | D | D1
D2 |
E | L3 | ||||
| NL1 | 40 | 6000 | 6 8 10 | 16 20
25 32 |
37 45
55 69 |
40 | 26 | 4 | 34 | 0.85 |
| 12 14 | ||||||||||
| NL2 | 100 | 6000 | 10 12 14 22 | 25 32
42 52 |
57 71
91 111 |
42 | 36 | 4 | 40 | 1.7 |
| 16 18 20 24 | ||||||||||
| NL3 | 160 | 6000 | 20 22 24 | 52 62 | 113
133 |
66 | 44 | 4 | 46 | 2.6 |
| 25 28 | ||||||||||
| NL4 | 250 | 6000 | 28 30 32 | 62 82 | 129
169 |
83 | 58 | 4 | 48 | 3.6 |
| 35 38 | ||||||||||
| NL5 | 315 | 5000 | 32 35 38 | 82 112 | 169
229 |
93 | 68 | 4 | 50 | 5.5 |
| 40 42 | ||||||||||
| NL6 | 400 | 5000 | 40 42 45 | 82 112 | 230 | 100 | 68 | 4 | 52 | 6.8 |
| 48 | ||||||||||
| NL7 | 630 | 3600 | 45 48 50 | 82 112 | 229 | 115 | 80 | 4 | 60 | 9.8 |
| 55 | ||||||||||
| NL8 | 1250 | 3600 | 48 50 55 | 112 142 | 229
289 |
140 | 96 | 4 | 72 | 26.5 |
| 60 63 65 | ||||||||||
| NL9 | 2000 | 2000 | 60 63 65 | 142 172 | 295
351 |
175 | 124 | 6 | 93 | 37.6 |
| 70 71 75 80 | ||||||||||
| NL10 | 3150 | 1800 | 70 71 75 80 | 142 172
212 |
292 352
432 |
220 | 157 | 8 | 110 | 55 |
