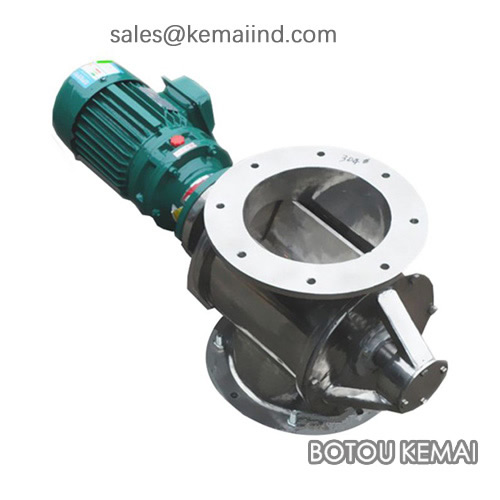

Rotary Valve Rotary Feeder Valve
  • Rotary Valve
  • Rotary Feeder Valve
Rotary Valve – Rotary Airlock | Feeder Valve
Item No.: None

Rotary valve manufacturer China Kemai CO.,ltd.Offer Rotary airlock and rotary feeder valve best price.Valve Model:YJD02,YJD04,YJD06,YJD08,YJD10,YJD12,YJD16,YJD26,YJD30.

Description

Rotary valve often use for airlock and feeder. The material have cast iron, stainless steel (SS 304,SS 316,SS 316L). We have fixed sizes. Also can be custom according to customer requirements.

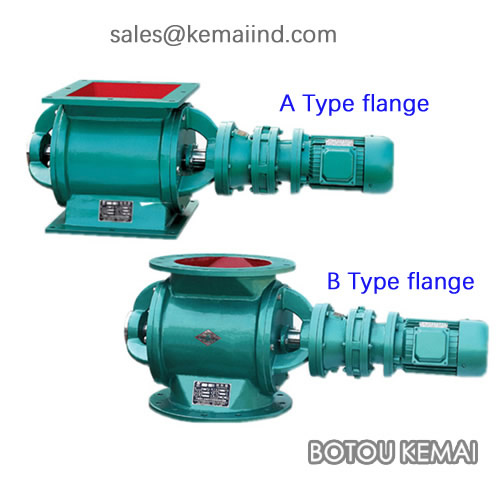

Rotary airlock valve flanges have two kinds: square(A type) and round(B type).

This valve mainly used in environmental protection, dust collector, feed, chemical industry, food, and other departments.

Rotary Valve Features:

  1. Feeding rate can be controled by adjusting the rotary speed of the impellers.
  2. Certain airtightness,suitable for material discharging under differential pressure.So this is a airlock valve.
  3. The bearing is far away from the shell, and can be used in high temperature environment.
  4. The bearing is far away from the shell, and can be used in high temperature environment.
  5. Material particles won’t get damaged.
  6. Smooth operation, low noise.
  7. Compact structure and easy to use.
  8. Feed rate is propotional to the rotary speed of impellers within a certain rotary speed range.

Rotary feeder valve data sheet:

Model YJD-02 YJD-04 YJD-06 YJD-08 YJD-10 YJD-12 YJD-14 YJD-16 YJD-18 YJD-20 YJD-26 YJD-30 YJD-40 YJD-50
capacity（L/r） 2 4 6 8 10 12 14 16 18 20 26 30 40 50
Speed（r/min） 25~40
Working Temperature T≤80℃，T≤200℃
material Powdery, granular
Rotary valve with motor power Motor model Y801-4 Y802-4 Y90S-4 Y90L-4 Y100L1-4 Y100L1-4 Y112M-4 Y132S-4
Power（KW） 0.55 0.75 1.1 1.5 2.2 3 4 5.5
Speed（r/min） 1390 1400 1430 1430 1430
Weight（Kg） 53 71 86 101 121 141 161 181 191 221 251 301 491 681

Rotary airlock valve size:

A type : square flanges rotary feeder valve: Model: YJD-A

Rotary valve square flange A type size

Model-：YJD-A A B C E F M H h n-φ It also can be customized.
YJD-A-02 240 200 150 650 420 122.5 225 12 8-9
YJD-A-04 260 230 180 758 526 140 280 15 8-11
YJD-A-06 280 250 200 778 536 150 300 15 8-11
YJD-A-08 300 270 220 798 546 160 320 18 8-11
YJD-A-10 320 290 240 880 628 170 340 18 8-13
YJD-A-12 340 310 260 900 638 180 360 18 8-13
YJD-A-16 380 350 300 960 678 200 400 20 8-17
YJD-A-26 480 450 400 1150 740 260 520 24 8-17
YJD-A-30 600 520 440 1190 755 300 600 24 12-17

B type : Round flanges rotary feeder valve: Model: YJD-B

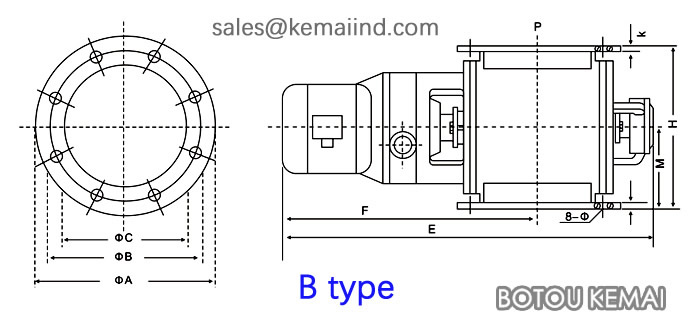

Rotary valve round flange B type size

Model-YJD-B ∅A ∅B ∅C E F M H h ∅
YJD-B-02 250 210 150 650 420 122.5 225 12 9
YJD-B-04 280 240 180 758 526 140 280 15 11
YJD-B-06 300 260 200 778 536 150 300 15 11
YJD-B-08 320 280 220 798 546 160 320 18 11
YJD-B-10 340 300 240 880 628 170 340 18 13
YJD-B-12 360 320 260 900 638 180 360 18 13
YJD-B-14 380 340 280 920 648 190 380 20 17
YJD-B-16 400 360 300 960 678 200 400 20 17
YJD-B-18 420 380 320 980 688 220 440 22 17
YJD-B-20 440 400 340 1000 698 230 450 22 17
YJD-B-26 500 460 400 1150 740 260 520 24 17
YJD-B-30 600 500 440 1190 755 280 600 24 17
