DC 25W 12V/24V 12~360RPM small Geared Motor. Speed: 12 15 20 30 45 55 70 85 105 160 200 270 360 470 RPM.
| Name | Small Geared DC motor | Motor outside diameter | Φ38 |
| Model | KM37-38S | Weight | 380g |
| Voltage | DC 12V/24V | Protection class | IP 54 |
| Speed | 12-360 RPM | Whether the speed adjust | Adjustable speed |
| Power | 25W | Rotate direction | Clockwise or counterclockwise all OK |
| Outside diameter of output shaft | Φ6 | Motor | Brush motor |
| Speed ratio | 399 | 316 | 288 | 171 | 108 | 89 | 73 | 58 | 46 | 31 | 24.9 | 17.9 | 13.5 | 10.7 |

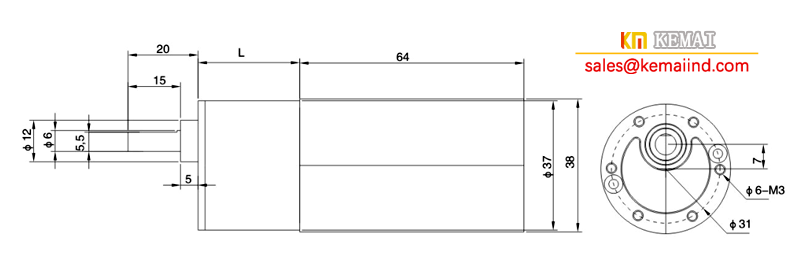

| Length（L） | 35.5 | 35.5 | 32.5 | 32.5 | 29.5 | 29.5 | 29.5 | 29.5 | 27.5 | 27.5 | 27.5 | 25.5 | 25.5 | 25.5 |
| No-load speed（r/min) | 12 | 15 | 20 | 30 | 45 | 55 | 70 | 85 | 105 | 160 | 200 | 270 | 360 | 470 |
| Rated speed（r/min) | 9 | 11 | 14 | 21 | 32 | 39 | 50 | 60 | 74 | 115 | 140 | 190 | 250 | 350 |
| Rated Torque（kgf.cm) | 25 | 25 | 25 | 25 | 23 | 18 | 16 | 13.5 | 10 | 6.5 | 6 | 4.5 | 3.6 | 3.2 |
| Volt DC12V Rated Current 2.1A / Volt DC24V Rated Current 1.2A / Power 25W | ||||||||||||||
