DC Geared Motor 12V 24V 5W model:KM25-370; Speed:5 11 20 30 40 50 55 66 77 90 100 200 300 350 rpm.
| Name | Geared DC Motor | Motor outside diameter | Φ25 |
| Model | KM25-370 | Weight | 90g |
| Voltage | DC 12V/24V | Protection class | IP 54 |
| Speed | 5-300 RPM | Whether the speed adjust | Adjustable speed |
| Power | 5W | Rotate direction | Clockwise or counterclockwise all OK |
| Outside diameter of output shaft | Φ4 | Motor | Brush motor |
| Speed ratio | 474 | 474 | 253 | 184 | 133 | 113 | 98 | 83 | 71 | 83 | 83 | 37.9 | 27.5 | 23.4 |

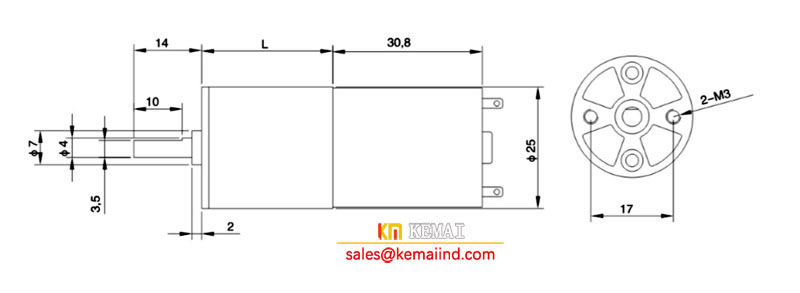

| Length（L） | 27 | 27 | 24 | 24 | 24 | 24 | 22 | 22 | 22 | 22 | 22 | 19 | 19 | 19 |
| No-load speed（r/min) | 5 | 11 | 20 | 30 | 40 | 50 | 55 | 66 | 77 | 90 | 100 | 200 | 300 | 350 |
| Rated speed（r/min) | 4 | 7 | 14 | 20 | 28 | 35 | 38 | 46 | 55 | 65 | 70 | 140 | 210 | 250 |
| Rated Torque（kgf.cm) | 5 | 8 | 6 | 4.5 | 3.5 | 2.5 | 2 | 1.5 | 1 | 1.4 | 1.3 | 0.85 | 0.7 | 0.65 |
| VOLT DC12VRated Current 0.3A / Volt DC24VRated Current 0.16A / Power 4W | ||||||||||||||
