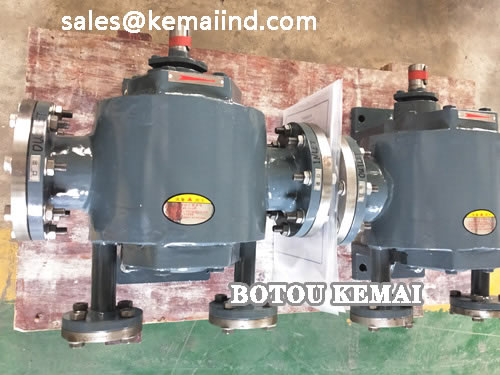

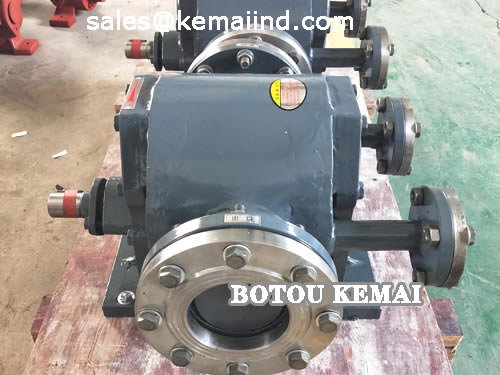

Jacketed gear bitumen pump flow:2~150m3/h. Caliber:1″ 2″ 3″ 4″ 6″inch. GA model bitumen gear pump use temperature≤350℃.
It applies to transport the medium is without causticity and solid grains and with freezing nature under the normal temperature. Especially for the cases such as extraventricular setting in chilliness distinct and craftwork course that need heat preservation. The medium temperature can reach 350℃.
Use:
It can transport heavy oil,bitumen(asphalt),glue,colophony scour and so on.
Structure Characteristic
There is a hollow interlayer in the pump body. There is import flange that can transmit hot oil,steam hot water and heat and cool the pump and liquid.
GA series gear bitumen pump data:
| Type | Caliber
mm |
Flow | Discharge pressure
Mpa |
Speed
r/min |
With motor | |
| L/min | KW | Motor type | ||||
| GA-33/0.6 | 25 | 33 | 0.6 | 1000 | 1.5 | Y100L-6 |
| GA-50/0.6 | 25 | 50 | 0.6 | 1500 | 2.2 | Y100L-4 |
| GA-80/0.6 | 40 | 80 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-125/0.6 | 40 | 125 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-125/0.6 | 50 | 125 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-200/0.6 | 50 | 200 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-300/0.6 | 80 | 300 | 0.6 | 1000 | 7.5 | 160M-6 |
| GA-300/0.4 | 80 | 300 | 0.4 | 1000 | 5.5 | 132M-6 |
| GA-300/0.8 | 80 | 300 | 0.8 | 1000 | 11 | 160M-4 |
| GA-480/0.4 | 80 | 480 | 0.4 | 1500 | 7.5 | 132M-4 |
| GA-480/0.6 | 80 | 480 | 0.6 | 1500 | 11 | 160M-4 |
| GA-480/0.8 | 80 | 480 | 0.8 | 1500 | 15 | 160L-4 |
| GA-630/0.4 | 100 | 630 | 0.4 | 1000 | 11 | 160L-6 |
| GA-630/0.8 | 100 | 630 | 0.8 | 1000 | 18.5 | 200L1-6 |
| GA-960/0.4 | 100 | 960 | 0.4 | 1500 | 22 | 180M-4 |
| GA-1000/0.6 | 150 | 1000 | 0.6 | 720 | 37 | 280S-8 |
| GA-1360/0.6 | 150 | 1360 | 0.6 | 960 | 45 | 250M-6 |
| GA-1800/0.6 | 200 | 1800 | 0.6 | 720 | 55 | 315S-8 |
| GA-2500/0.6 | 200 | 2500 | 0.6 | 960 | 75 | 315S-6 |
