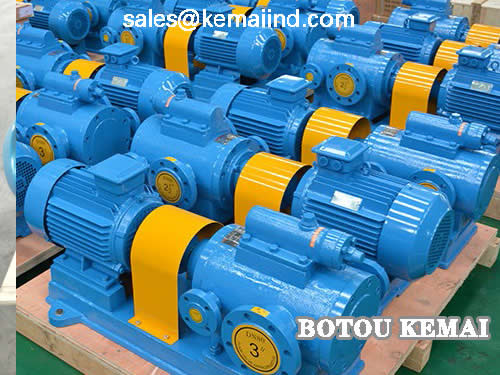

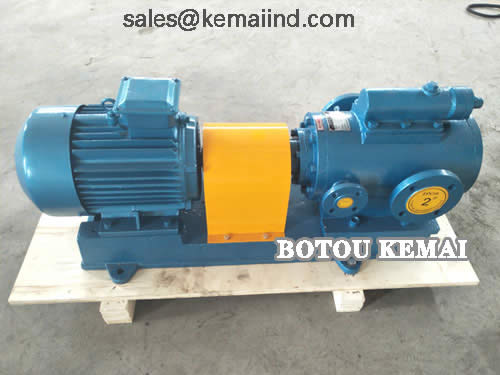

Screw Bitumen Pump With Heating Jacket pump flow:4.2~108M3/H. Prssure 0.6MPA,0.8MPA and 1.0MPA.Main use for transfer asphalt(bitumen).

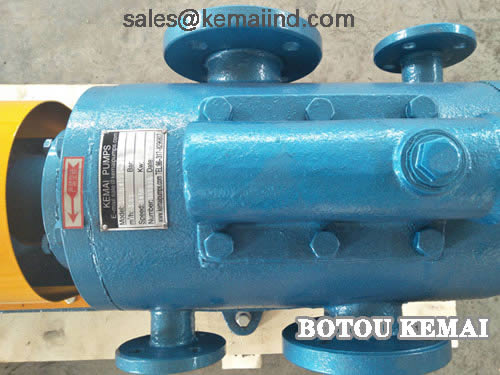

This is a three screw pump with jacketed,a postive displacement ratary pump.Based on the principle of screw engagement,drive screw and idler screw are engaged in the three insert holes.Sealed cham-bers are thereby formed. These closed chambers will take the medium inside to move from the inlet to the outlet end axially and get a constant pressure.
The three screw bitumen pump are suitable visvosity 3.0~760mm2/s.The maxium temperature is 350℃.
Jacketed screw pump are widely used to deliver bitumen,heavy fuel oil,heavy gear oil and etc..Heat carrier may be steam,hot oil or hot water. While cold carrier may be air or liquid.
Used in the glass,chemical fiber,electrical engineering,road and etc…
| Model | Flow | outlet pressure
(MPa) |
Speed
(r/min) |
Power(kw) | NPSHr
(m) |
Motor model | ||
| (m3/h) | (l/min) | Shaft power | Motor power | |||||
| 45×3-36 | 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 | 90L-6-B3 |
| 2.7 | 45 | 1.0 | 1.2 | 1.5 | 100L-6-B3 | |||
| 25 | 42 | 1.6 | 1.6 | 2.2 | 112M-6-B3 | |||
| 2.4 | 40 | 2.5 | 2.8 | 4 | 132M1-6-B3 | |||
| 4.2 | 70 | 0.6 | 1450 | 1.0 | 1.5 | 5 | 90L-4-B3 | |
| 4.0 | 66 | 1.0 | 1.7 | 2.2 | 100L1-4-B3 | |||
| 3.8 | 63 | 1.6 | 2.8 | 3 | 100L3-4-B3 | |||
| 3.5 | 58 | 2.5 | 4.3 | 5.5 | 132S-4-B3 | |||
| 45×2-46 | 4.2 | 70 | 0.6 | 950 | 1.0 | 1.5 | 5 | 100L-6-B3 |
| 4.0 | 66 | 1.0 | 1.7 | 2.2 | 112M-6-B3 | |||
| 6.3 | 105 | 0.6 | 1450 | 1.5 | 2.2 | 100L1-4-B3 | ||
| 6.1 | 101 | 1.0 | 2.3 | 3 | 100L2-4-B3 | |||
| 54×2-46 | 8.0 | 133 | 0.8 | 970 | 2.3 | 3 | 5 | 100L-6-B3 |
| 8.0 | 133 | 1.0 | 1.5 | 2.2 | 112M-6-B3 | |||
| 14 | 233 | 0.6 | 1450 | 2.8 | 4 | 100L1-4-B3 | ||
| 14 | 233 | 1.0 | 4.3 | 5.5 | 100L2-4-B3 | |||
| 62×2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 | 132S-6-B3 |
| 8.25 | 137.9 | 1.0 | 3.18 | 4 | 132M1-6-B3 | |||
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | 112M-4-B3 | ||
| 12.6 | 210.5 | 1.0 | 4.86 | 7.5 | 132M-4-B3 | |||
| 62×2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 | 132M1-6-B3 |
| 9.5 | 158 | 1.0 | 3.6 | 5.5 | 132M2-6-B3 | |||
| 15.1 | 251 | 0.6 | 1450 | 3.6 | 5.5 | 132S-4-B3 | ||
| 14.6 | 243 | 1.0 | 5.5 | 7.5 | 132M-4-B3 | |||
| 80×2-36 | 17.0 | 283.3 | 0.8 | 950 | 4.3 | 7.5 | 5.5 | 160M-6-B3 |
| 25.7 | 428 | 0.6 | 1450 | 5.4 | 7.5 | 132M-4-B3 | ||
| 25.0 | 417 | 1.0 | 8.5 | 11 | 160M-4-B3 | |||
| 80×2-46 | 23.9 | 398.5 | 0.6 | 950 | 5.5 | 7.5 | 5.5 | 160M-6-B3 |
| 23.1 | 386.3 | 1.0 | 8.6 | 11 | 160L-6-B3 | |||
| 36.6 | 610.3 | 0.6 | 1450 | 8.4 | 11 | 160M-4-B3 | ||
| 35.7 | 594.5 | 1.0 | 13.1 | 15 | 160L-4-B3 | |||
| 80×2-51 | 27.5 | 485.5 | 0.6 | 950 | 6.3 | 11 | 5.5 | 160L-6-B3 |
| 26.9 | 448.3 | 1.0 | 10.5 | 15 | 180L-6-B3 | |||
| 41.9 | 698.3 | 0.6 | 1450 | 9.6 | 11 | 160M-4-B3 | ||
| 41.0 | 684.1 | 1.0 | 16.0 | 18.5 | 180M-4-B3 | |||
| 90×2-36 | 24.2 | 403.5 | 0.6 | 960 | 5.52 | 7.5 | 5.5 | 160M-6-B3 |
| 23.6 | 394.6 | 1.0 | 8.52 | 11 | 160L-6-B3 | |||
| 37 | 615.9 | 0.6 | 1450 | 8.52 | 11 | 160M-4-B3 | ||
| 36.1 | 602.4 | 1.0 | 13 | 15 | 160L-4-B3 | |||
| 90×2-42 | 28.2 | 470.9 | 0.6 | 950 | 6.6 | 11 | 5.5 | 160L-6-B3 |
| 27.5 | 457.6 | 1.0 | 10.2 | 15 | 180L-6-B3 | |||
| 43.1 | 718.8 | 0.6 | 1450 | 10 | 15 | 160L-4-B3 | ||
| 41.9 | 698.5 | 1.0 | 15.5 | 18.5 | 180M-4-B3 | |||
| 90×2-46 | 34.0 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 | 160L-6-B3 |
| 52.6 | 875.4 | 0.6 | 1450 | 12 | 15 | 160L-4-B3 | ||
| 52.0 | 866 | 0.8 | 14.9 | 18.5 | 180M-4-B3 | |||
| 51.4 | 856.1 | 1.0 | 18.6 | 22 | 180L-4-B3 | |||
| 100×2-46 | 48.0 | 800 | 0.8 | 950 | 13.3 | 15 | 5.5 | 180L-6-B3 |
| 72.7 | 1212 | 0.6 | 1450 | 16.5 | 18.5 | 180M-4-B3 | ||
| 72.0 | 1200 | 0.8 | 20.4 | 22 | 180L-4-B3 | |||
| 71.2 | 1187 | 1.0 | 25.5 | 30 | 200L-4-B3 | |||
| 100×2-51 | 56.9 | 948.9 | 0.6 | 950 | 12.5 | 15 | 5.5 | 180L-6-B3 |
| 55.7 | 928.6 | 1.0 | 20.8 | 30 | 225L-6-B3 | |||
| 86.9 | 1448.3 | 0.6 | 1450 | 19.1 | 22 | 180L-4-B3 | ||
| 85.0 | 1417.2 | 1.0 | 31.8 | 37 | 225S-4-B3 | |||
| 110×2-46 | 60.9 | 1015 | 0.6 | 950 | 13.7 | 18.5 | 5.5 | 200L1-6-B3 |
| 58.9 | 951.7 | 1.0 | 21.8 | 30 | 255M-6-B3 | |||
| 96.7 | 1611 | 0.6 | 1450 | 21.9 | 30 | 200L-4-B3 | ||
| 94.6 | 1577 | 1.0 | 33.9 | 45 | 255M-4-B3 | |||
| 120×2-42 | 67.9 | 1131 | 0.6 | 950 | 15.5 | 18.5 | 5.5 | 200L1-6-B3 |
| 65.4 | 1090 | 1.0 | 24.5 | 30 | 255M-6-B3 | |||
| 108 | 1802 | 0.6 | 1450 | 24.7 | 30 | 200L-4-B3 | ||
| 105 | 1760 | 1.0 | 38.2 | 45 | 255M-4-B3 | |||
| 120×2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 | 200L1-6-B3 |
| 77.2 | 1285 | 1.0 | 28.2 | 37 | 250M-6-B3 | |||
| 126 | 2101 | 0.6 | 1450 | 28.5 | 37 | 225S-4-B3 | ||
| 123 | 2059 | 1.0 | 44.1 | 55 | 255M-4-B3 | |||
| 150×2-46 | 158 | 2640 | 0.6 | 950 | 34.6 | 45 | 5.5 | Y280S-6-B3 |
| 154 | 2582 | 1.0 | 54.5 | 75 | Y315S-6-B3 | |||
| 241.7 | 4029.7 | 0.6 | 1450 | 53.8 | 75 | Y280S-4-B3 | ||
| 236.5 | 3942.2 | 1.0 | 82.2 | 90 | Y280M-4-B3 | |||
