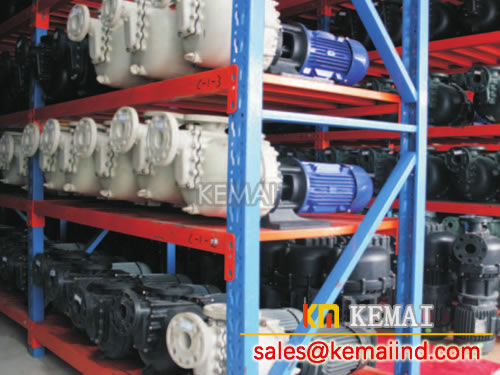

SCP series self-priming centrifugal pump material polypropylene(PP),FRPP,PVDF. This is a chemical centrifugal pump. Used to transfer alkali,acid liquid.
FRPP PVDF Self-priming Chemical Centrifugal Pump Pump material: FRPP,CFRPP,CPVC,PVDF. The following is the model meaning and self-priming pump performance table：
SCP：Self-priming chemical centrifugal pump
1.5：1.5″(1.5 inch); 2: 2″(2 inch); 3: 3″(3 inch)
L: low head； H: high head；
B: NON CHECK-VALVE; A: WITH CHECK-VALVE
| Model | Inlet / Outlet (mm) | Motor Power(HP) | Max.Flow(L/min) | Max.Head(M) | Weight (KG) |
| 50HZ/60HZ | 50HZ/60HZ | ||||
| SCP-1.511L | 40 / 40 | 1/2 | 185 / 200 | 7 / 7.5 | 27 |
| SCP-1.513L | 40 / 40 | 1/2 | 185 / 200 | 7 / 7.5 | 27 |
| SCP-1.512H | 40 / 40 | 1 | 220 / 240 | 13.5 / 16 | 26 |
| SCP-1.514L | 40 / 40 | 1 | 210 / 270 | 7 / 9 | 29 |
| SCP-1.522L | 40 / 40 | 2 | 280 / 300 | 17 / 18 | 30 |
| SCP-1.522H | 40 / 40 | 2 | 270 / 330 | 18 / 22 | 34 |
| SCP-232L | 50 / 50 | 3 | 410 / 430 | 17 / 21 | 38 |
| SCP-232H | 50 / 50 | 3 | 463 / 480 | 21 / 29 | 42 |
| SCP-252H | 50 / 50 | 5 | 542 / 600 | 28 / 34 | 55 |
| SCP-352H | 75 / 75 | 5 | 850 / 860 | 26 / 35 | 56 |
| SCP-372H | 75 / 75 | 7.5 | 945 / 960 | 27.5 / 35 | 64 |
| SCP-3102H | 75 / 75 | 10 | 957 / 1000 | 28.5 / 40 | 70 |
