ISW ISWR ISWH ISWY ISWHY Horizontal Centrifugal Pump

Application

1.ISW horizontal centrifugal pump is used to transport pure water and other liquids of the similar physical nature as pure water and suitable for water supply and drainage in industries and cities boost water-feeding of high buildings garden irregation fire-fighting boost remote mater-transportation warming cold-hot water circulation and boost in bathrooms,and equipment completing as well. The temperature of the used medium is under 80℃.

2.ISWR horizontal hot-water pump is suitable for the warming,hot-water boost, circulation, transportation etc. heat-supply system of the buildings and houses in civil and enterprise units, such as power station, thermal power station residual heat utilization, metallurgy, chemical industry, textile, wood process, paper-making etc.
where there is a high-temperature hot-water supply system from industrial boilers. The used medium’s temperature is unde 120℃.

3.ISWH horizontal chemical pump is used to tran sport the liquid containing no solid grain, of cornosivity and a similar viscosity like water and suitable for light textile industry, petroleum, chemistry, metallurgy, electric power, paper-making, food, pharmacy, synthetic fibre etc.Departments.The temperature is -20 -120℃.

4.ISWY horizontal anti-explosion oil pump is suitable for the industries of petroleum, light & textile in dustry, chemistry, mechanism tec.to transport noncorro sive, combustible and explosible liquids, the temperature of the transported medium is -20 ~ +120℃. The pump is made of cast iron and stainless steel. and the medium intensity 1000Kg/m3.

5.ISWHY horizontal anti-explosion chemical pump is used to transport the liquid containing no solid grain,of corrosivity and a similar viscosity like water, combustible and explosible and suitable for light & textile industry, petroleum, chemistry, metallurgy, mine, pharmacy, synthetic fibre etc.departments. The used temperature is -20 -120℃.

Horizontal centrifugal pump Structure

Horizontal centrifugal pump structure

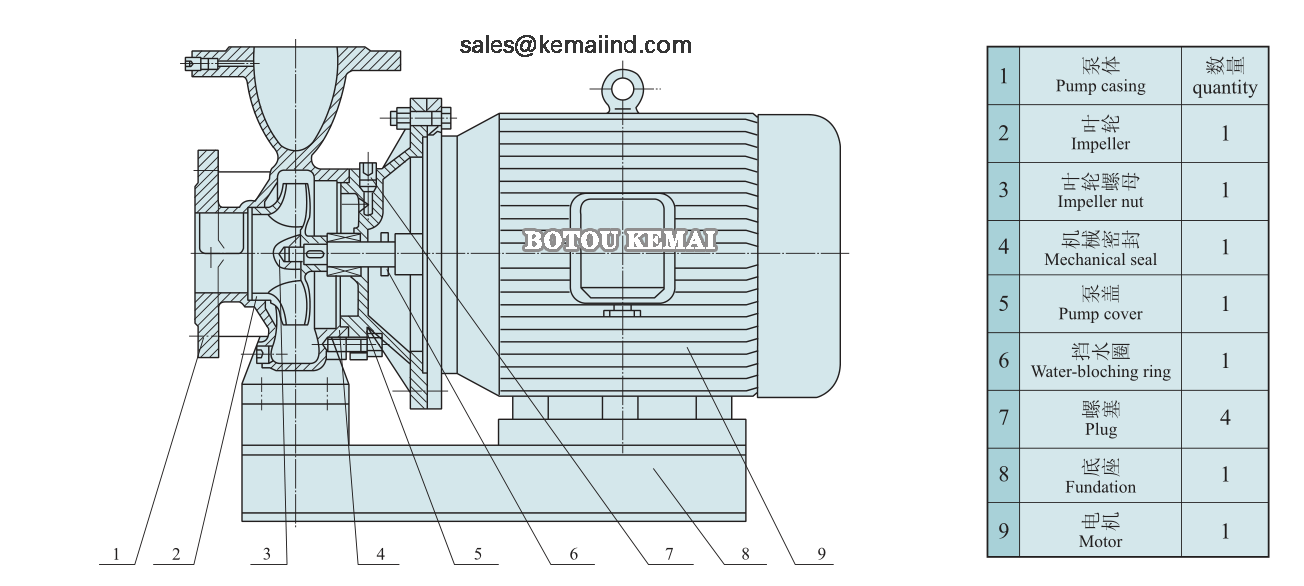

See the figure for the structure. This pump consists of pump, motor and fundation three parts and its structure is formed by pump casig, impeller, pump cover, mechanical seal etc. Components.It is a single-stage single-suction horizontal centrifugal pump and both pump casing and cover are separated from the back side of the impeller, that is the back-door structural form. For most of the pumps,a seal ring is set in both front and back of the impeller to make a balance action on the axial force of the rotor.
Both pump and motor are coaxial and a dual-angle conta-cting-ball bearing structure used on the projected end of the motor’s shaft can partially balance the residual axial force of the pump.With the straight joint between pump and motor, it is not necessary to calibrate when being mounted.
Both of them have a common fundation and a buffer dashpot of model JSD is used to isolate vibration. The outlet of the pump can be mounted vertically upward, leftward or rightward, flexibly and easily.

This is a mechanical seal pump, if your working environment does not allow the pump to leak liquid. Please choose magnetic pump to solve this problem.
