Home > Chemical Pump > Vertical Chemical Pump

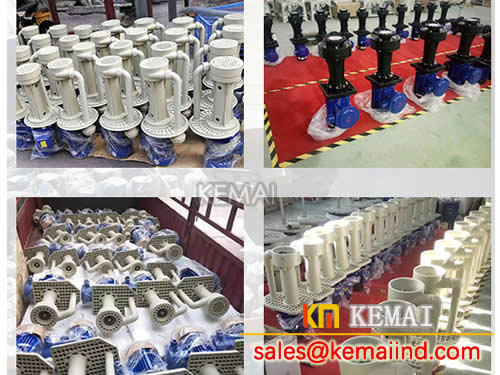

Vertical Chemical Pump Vertical Chemical Pump PVDF PP
  • Vertical Chemical Pump
  • Vertical Chemical Pump PVDF PP
Vertical Chemical Pump
Item No.: None

Vertical chemical pump material have FRPP,PVDF,CPVC,CFRPP, Polypropylene (PP). We have Large flow and small flow two kind viertical pump.Suitable for the cooling, spray cleaning, etching,waste water treatment,waste gas treatment process, etc.

Description

Vertical chemical pump uses:

  • It can be used with a filter to transport chemical liquid.
  • For high temperature or crystalline chemical liquids. Examples: chemical copper, gold plating solution, nickel plating solution.
  • For PC plate etching remember solution circulation.
  • Waste water treatment and transportation.
  • Spray wash the tower.
  • Chemical mixing tank circulation.

We have two types of plastic vertical chemical pump, as follows:

Model meaning：

  1. VCPL：Large flow;      VCP：small flow.
  2. 40：Pump inlet/outlet：   40mm（1.5 inch）
  3. LS: low specific density (1.1);      HS: How specific density(1.4)
  4. 1: 1HP

I：Large flow 250L/min~1730L/min vertical chemical pump

Model Inlet/Outlet

(mm)

 Power

(HP)

 Max.Flow Max.Head Weight

(KG)
50HZ/60HZ 50HZ/60HZ
VCPL-40LS-1 50 40 1 250/220 11/12 29
VCPL-40LS-2 50 40 2 300/370 16/21 38
VCPL-40LS-3 50 40 3 375/480 20/20 41
VCPL-50LS-3 65 50 3 460/500 20/22 41
VCPL-50LS-5 65 50 5 650/710 24/29 55
VCPL-65LS-5 80 65 5 680/800 24/29 55
VCPL-65LS-7.5 80 65 7.5 900/930 26/36 95
VCPL-65LS-10 80 65 10 950/1050 28/39 106
VCPL-100LS-15 100 100 15 1760/1760 39/44 155
VCPL-50HS-3 65 50 3 350/430 20/19 41
VCPL-50HS-5 65 50 5 470/490 23/27 55
VCPL-65HS-7.5 80 65 7.5 785/790 26/29 95
VCPL-65HS-10 80 65 10 950/950 26/37 106
VCPL-100HS-15 100 100 15 1680/1730 38/43 155

II：Samll flow 24L/min~225L/min vertical chemical pump

Model Inlet/Outlet

(mm)

 Power(HP) Max.Flow Max.Head Weight

(KG)
50HZ/60HZ 50HZ/60HZ
VCP-15LS-1/15 20 15 1/15 24/32 1/1.5 3
VCP-20LS-1/6 25 20 1/6 60/75 3/3 4
VCP-20LS-1/4 25 20 1/4 70/85 6/8 13
VCP-20LS-1/3 25 20 1/3 80/100 6.5/9 13
VCP-20HS-1/6 25 20 1/6 55/70 3/3 4
VCP-20HS-1/3 25 20 1/3 70/85 6/8 13
VCP-25LS-1/2 40 25 1/2 150/165 8/10 20
VCP-40LS-1 50 40 1 240/225 11/12 20
VCP-40LS-2 50 40 2 290/340 13/18 24
VCP-25HS-1 40 25 1 200/185 11/11 20
VCP-40HS-1 50 40 1 190/175 9/9 20
VCP-40HS-2 50 40 2 225/180 11/12 24
