Diaphragm pump drive have two types: electric and air(pneumatic).Air Operated model is AODD Pmmp. Electric Operated model is EODD pump.We are in CHINA, Now we sell our products all over the world.
Pump material: cast steel, aluminum alloy, polypropylene(PP),SS 304，SS 316，SS 316L, PTFE.
Diaphragm Material：Santoprene,Teflon.
Valve Ball: PTFE, Santoprene.
Valve Seat: PTFE, Santoprene.
Pump size: 06=1/4 inch; 10=3/8 inch; 15=1/2 inch; 20=3/4 inch; 25=1 inch; 40=1.5 inch;50=2 inch; 80=3 inch; 100=4 inch; 125=5 inch.
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
| AODD-10 | 10mm (3/8″) | 22 | 70 | 7 | 1/4″ |
| AODD-15 | 15mm (1/2″) | 22 | 70 | 7 | 1/4″ |
| AODD-20 | 20mm (3/4″) | 57 | 70 | 7 | 1/4″ |
| AODD-25 | 25mm (1″) | 57 | 70 | 7 | 1/4″ |
| AODD-25A | 25mm (1″) | 116 | 84 | 8.4 | 1/2″ |
| AODD-32 | 32mm (1.2″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40 | 40mm (1.5″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40A | 40mm (1.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50 | 50mm (2″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-65 | 65mm (2.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50A | 50mm (2″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80 | 80mm (3″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-100 | 100mm (4″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80A | 80mm (3″) | 1041 | 84 | 8.4 | 3/4″ |
| AODD-125 | 125mm (5″) | 1041 | 84 | 8.4 | 3/4″ |
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
Motor power
(KW) |
| EODD-10 | 10mm (3/8″) | 12.8 | 40 | 4 | 1/4″ | 0.55KW |
| EODD-15 | 15mm (1/2″) | 12.8 | 40 | 4 | 1/4″ | 0.55KW |
| EODD-25A | 25mm (1″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-32 | 32mm (1.2″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-40 | 40mm (1.5″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-40A | 40mm (1.5″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-50 | 50mm (2″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-65 | 65mm (2.5″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-50A | 50mm (2″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-80 | 80mm (3″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-100 | 100mm (4″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-80A | 80mm (3″) | 480 | 40 | 4 | 3/4″ | 4KW |
| EODD-125 | 125mm (5″) | 480 | 40 | 4 | 3/4″ | 4KW |
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
Motor power
(KW) |
| EODD-H-10 | 10mm (3/8″) | 12.8 | 70 | 7 | 1/4″ | 0.75KW |
| EODD-H-15 | 15mm (1/2″) | 12.8 | 70 | 7 | 1/4″ | 0.75KW |
| EODD-H-25A | 25mm (1″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-32 | 32mm (1.2″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-40 | 40mm (1.5″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-40A | 40mm (1.5″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-50 | 50mm (2″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-65 | 65mm (2.5″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-50A | 50mm (2″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-80 | 80mm (3″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-100 | 100mm (4″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-80A | 80mm (3″) | 480 | 70 | 7 | 3/4″ | 5.5KW |
| EODD-H-125 | 125mm (5″) | 480 | 70 | 7 | 3/4″ | 5.5KW |
AODD-125 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF. This is 5 inch pump, Manufacturers from CHINA.
View More
AODD-80 and AODD-100 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF. Manufacturers from CHINA. AODD-80 is 3 inch pump, AODD-100 is 4 …
View More
AODD-32/40/50/65 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF.Model:AODD-32; AODD-40; AODD-50; AODD-65;
View More
AODD-25A/40A/50A/80A Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF.Model:AODD-25A; AODD-40A; AODD-50A; AODD-80A;
View More
AODD-10/15/20/25 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP.Model:AODD-10; AODD-15; AODD-20; AODD-25;
View More

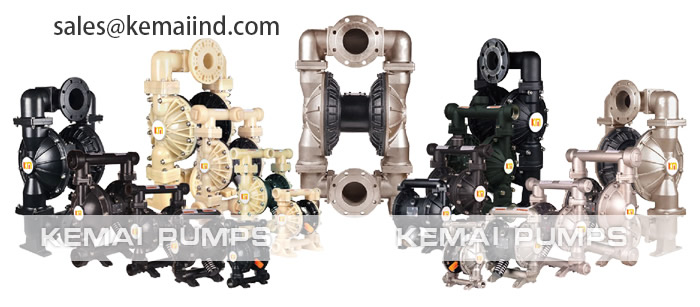

Air operated diaphragm pump made of polypropylene, aluminum, stainless steel,PTFE. Because it is double diaphragm pump, so also name AODD pump. Have 3/8" 1" 1.5" 2" 3" 4" 5" inch…
View More

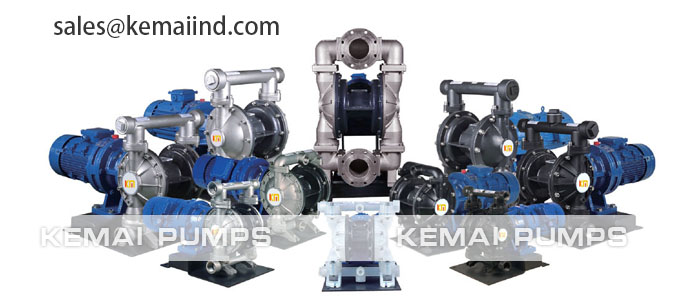

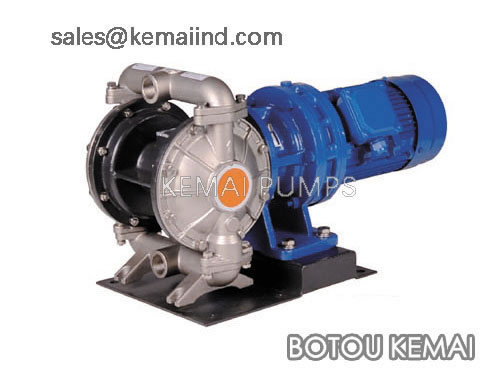

EODD series electric operated diaphragm pump by the pump, gear box, motor composition. Eodd pump made of polypropylene, aluminum, stainless steel,PTFE. Inlet/Outlet have: 3/8" 1"…
View More

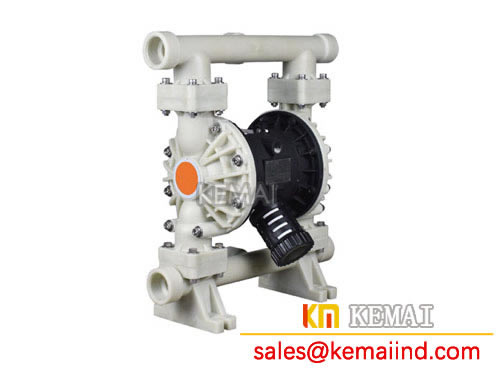

Import Plastic Diaphragm Pump from China. Kemai are one of the best suppliers of high quality Plastic Diaphragm Pump.
View More

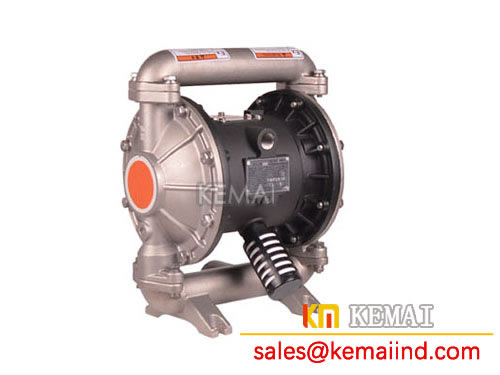

Stainless Steel Diaphragm Pump manufacturer and supplier from China. Stainless steel diaphragm pump model AODD-S series is an air operated diaphragm pump.
View More

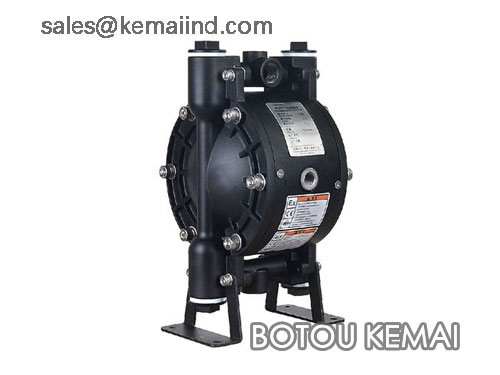

3/8 inch Air Operated Diaphragm Pump Aluminum alloy, stainless steel (SUS 304,SUS 316,SUS 316L), cast steel. Model: AODD-10 , Max.Flow:22L/min. Max.Head:7 bar.
View More

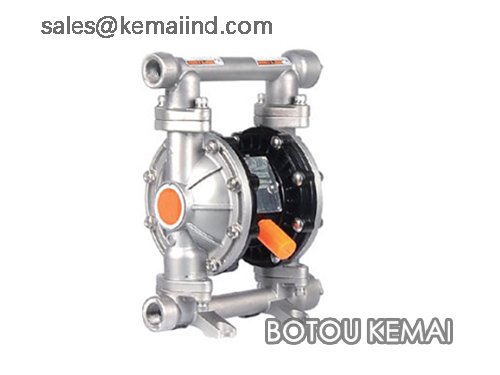

3/4 inch Air Operated Diaphragm Pump( 3/4 inch AODD pump).KEMAI CO.,LTD is Manufacturers and suppliers in China.This pump made of Polypropylene (PP),Teflon(PTFE),Stainless Steel…
View More

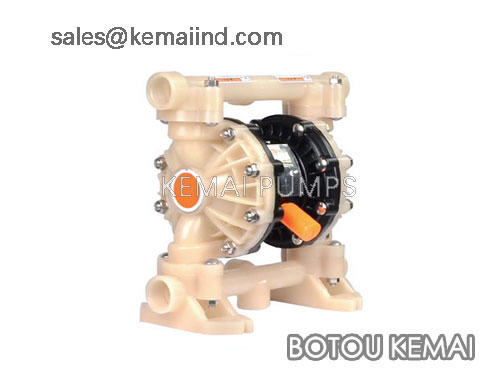

1 Inch Air Operated Diaphragm Pump Flow have two types:57L/min and 116L/min. AODD pump body materials:CS,Aluminum, PP,SUS, PVDF.
View More
