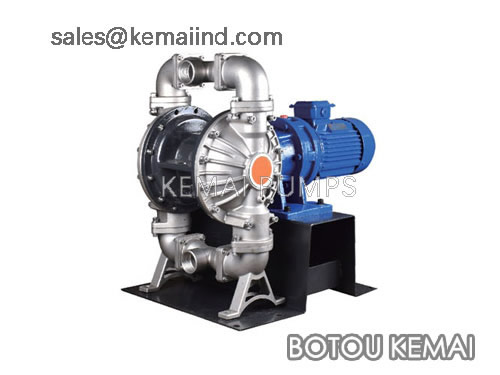

2 inch operated electric diaphragm pump there are four models: EODD-50, EODD-H-50, EODD-50A, EODD-H-50A. Inlet/Outlet: 50mm.
Pump materials: Cast Steel, SG iron, Aluminum, PP, SUS304, SUS 316, SUS 316L , PVDF.
2″ pump electric diaphragm pump have low pressure and high pressure two kinds (four models):
- Low pressure pump model is : EODD-50
Max.Working Pressure: 58psi (0.4Mpa, 4 bar).
Max.Flow: 42.8gpm (162 Lpm)
Motor：2.2KW
- High pressure pump model is : EODD-H-50
Max.Working Pressure: 102psi (0.7Mpa, 7 bar).
Max.Flow: 42.8gpm (162 Lpm)
Motor：3KW
- Low pressure pump model is : EODD-50A (large flow type)
Max.Working Pressure: 58psi (0.4Mpa, 4 bar).
Max.Flow: 64.7gpm (245 Lpm)
Motor：3KW
- High pressure pump model is : EODD-H-50A (large flow type)
Max.Working Pressure: 102psi (0.7Mpa, 7 bar).
Max.Flow: 64.7gpm (245 Lpm)
Motor：4KW
