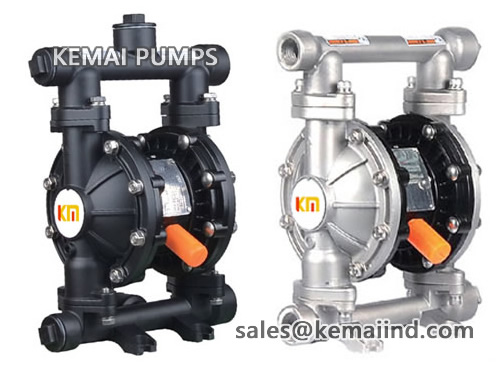

aodd-15 air operated double diaphragm pump

AODD-10/15/20/25 Diaphragm Pump

Item No.: None

AODD-10/15/20/25 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP.Model:AODD-10; AODD-15; AODD-20; AODD-25;

Description

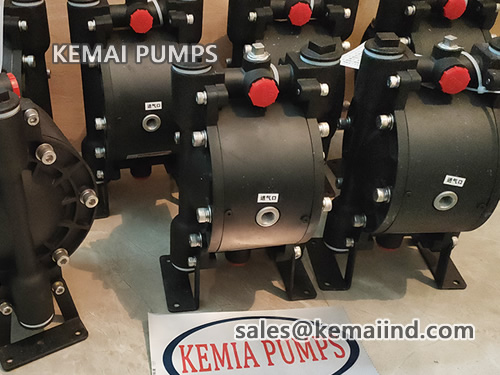

AODD-10: Inlet/Outlet:3/8 inch (10mm); Max flow:22L/min; Max head:70M; 7bar; Air inlet size:1/4″
AODD-15: Inlet/Outlet:1/2 inch (15mm); Max flow:22L/min; Max head:70M; 7bar; Air inlet size:1/4″
AODD-20: Inlet/Outlet:3/4 inch (20mm); Max flow:57L/min; Max head:70M; 7bar; Air inlet size:1/4″

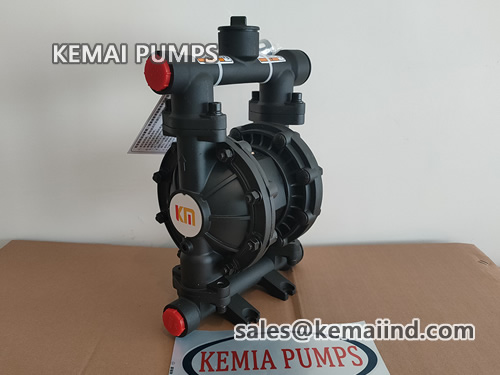

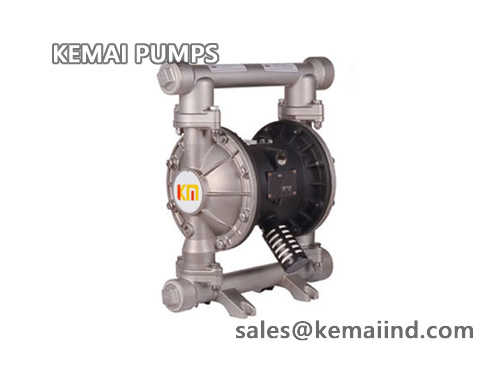

AODD-25: Inlet/Outlet:1 inch (25mm); Max flow:57L/min; Max head:70M; 7bar; Air inlet size:1/4″

AODD-10~25 inlet and outlet all are threaded link; The pump materials have PP(polypropylene)/Aluminium/Stainless steel (SS 304 316 316L)/PVDF.
