Electric Operated Diaphragm Pump & EODD Pump

EODD series electric operated diaphragm pump mainly uses cycloid reducer technology. The crank slider mechanism drives the double diaphragm to do reciprocating motion. Which makes the working chamber volume changes occur alternately so as to keep the liquid sucking and discharging.

Meanwhile,nowerdays,due to the breakthrough of diaphragm materials. More and more international industrialized countries have adopted this type of pump. Which replacing part of the centrifugal pumps,screw pumps. The are widely applied to petrochemical,ceramic and metallurgical industries.

EODD Pump Model:

EODD-50
EODD：Electric Operated Double Diaphragm Pump
50：Inlet/Outlet: 50mm (2 inch)

EODD-10 (3/8″)
EODD-15 (1/2″)
EODD-20 (3/4″)
EODD-25 (1″)
EODD-32 (1.2″)
EODD-40 (1.5″)
EODD-50 (2″)
EODD-80 (3″)
EODD-100 (4″)
EODD-125 (5″)

Electric Operated Diaphragm Pump material:

Stainless steel

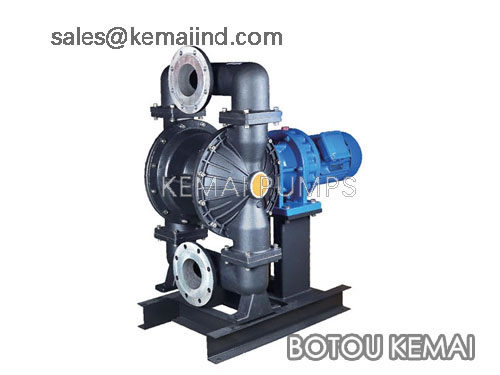

Aluminum alloy

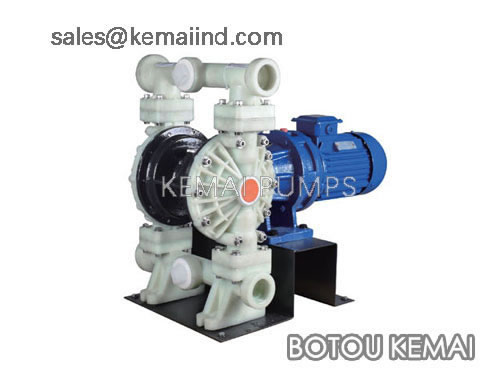

polypropylene
PVDF
PTFE

Advantages:

• Self-priming ability of more than 7m without irrigation water.
• Good performance,particles below 10mm slurry,etc. can effortlessly pass through.
• Since the diaphragm is separated from the transmission medium and transmission machinery,the media will not be leaked out. Pump itself is unsealed, which greatly extended service life. Depending on the medium,the diaphragm can be divided into chloroprene rubber,fluorine rubber,etc., which meet different customer needs.
• Medium flows through the pump part, according to customer requirements. Divided into cast iron,steel,stainless steel,rubber lined. Motors can be divided into ordinary and explosion-proof.

Application:

1. Loading and unloading thankers, oil depots and oil.
2. Recovering and recycling of hot water.
3. As a variety of filter first-level pressure device.
4. High temperature media up to 150℃.
5. Acids, alkalis, corrosive liquids.
6. A variety of toxic,flammable,volatile liquid
7. Pumping sewage and residual oil from cruises or barges.
8. Hops and yeast slurry,syrup,molasses.
