Diaphragm pump drive have two types: electric and air(pneumatic).Air Operated model is AODD Pmmp. Electric Operated model is EODD pump.We are in CHINA, Now we sell our products all over the world.
Pump material: cast steel, aluminum alloy, polypropylene(PP),SS 304，SS 316，SS 316L, PTFE.
Diaphragm Material：Santoprene,Teflon.
Valve Ball: PTFE, Santoprene.
Valve Seat: PTFE, Santoprene.
Pump size: 06=1/4 inch; 10=3/8 inch; 15=1/2 inch; 20=3/4 inch; 25=1 inch; 40=1.5 inch;50=2 inch; 80=3 inch; 100=4 inch; 125=5 inch.
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
| AODD-10 | 10mm (3/8″) | 22 | 70 | 7 | 1/4″ |
| AODD-15 | 15mm (1/2″) | 22 | 70 | 7 | 1/4″ |
| AODD-20 | 20mm (3/4″) | 57 | 70 | 7 | 1/4″ |
| AODD-25 | 25mm (1″) | 57 | 70 | 7 | 1/4″ |
| AODD-25A | 25mm (1″) | 116 | 84 | 8.4 | 1/2″ |
| AODD-32 | 32mm (1.2″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40 | 40mm (1.5″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40A | 40mm (1.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50 | 50mm (2″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-65 | 65mm (2.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50A | 50mm (2″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80 | 80mm (3″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-100 | 100mm (4″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80A | 80mm (3″) | 1041 | 84 | 8.4 | 3/4″ |
| AODD-125 | 125mm (5″) | 1041 | 84 | 8.4 | 3/4″ |
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
Motor power
(KW) |
| EODD-10 | 10mm (3/8″) | 12.8 | 40 | 4 | 1/4″ | 0.55KW |
| EODD-15 | 15mm (1/2″) | 12.8 | 40 | 4 | 1/4″ | 0.55KW |
| EODD-25A | 25mm (1″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-32 | 32mm (1.2″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-40 | 40mm (1.5″) | 48 | 40 | 4 | 1/2″ | 1.5KW |
| EODD-40A | 40mm (1.5″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-50 | 50mm (2″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-65 | 65mm (2.5″) | 162 | 40 | 4 | 1/2″ | 2.2KW |
| EODD-50A | 50mm (2″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-80 | 80mm (3″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-100 | 100mm (4″) | 245 | 40 | 4 | 1/2″ | 3KW |
| EODD-80A | 80mm (3″) | 480 | 40 | 4 | 3/4″ | 4KW |
| EODD-125 | 125mm (5″) | 480 | 40 | 4 | 3/4″ | 4KW |
| Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
Motor power
(KW) |
| EODD-H-10 | 10mm (3/8″) | 12.8 | 70 | 7 | 1/4″ | 0.75KW |
| EODD-H-15 | 15mm (1/2″) | 12.8 | 70 | 7 | 1/4″ | 0.75KW |
| EODD-H-25A | 25mm (1″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-32 | 32mm (1.2″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-40 | 40mm (1.5″) | 48 | 70 | 7 | 1/2″ | 2.2KW |
| EODD-H-40A | 40mm (1.5″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-50 | 50mm (2″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-65 | 65mm (2.5″) | 162 | 70 | 7 | 1/2″ | 3KW |
| EODD-H-50A | 50mm (2″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-80 | 80mm (3″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-100 | 100mm (4″) | 245 | 70 | 7 | 1/2″ | 4KW |
| EODD-H-80A | 80mm (3″) | 480 | 70 | 7 | 3/4″ | 5.5KW |
| EODD-H-125 | 125mm (5″) | 480 | 70 | 7 | 3/4″ | 5.5KW |
1 inch electric diaphragm pump have two model:EODD-25 is 4 bar. EODD-H-25 is 7 bar.: EODD-25A Pump materials: Cast Steel, SG iron, Aluminum, PP, SUS304, SUS 316, SUS 316L , PVDF…
View More
2 Inch Air Operated Diaphragm Pump Model:AODD-50,AODD-50A.Materials:CS,Aluminum, PP,SUS 304,SUS 316,SUS 316L PVDF.
View More
2 inch operated electric diaphragm pump there are four models: EODD-50, EODD-H-50, EODD-50A, EODD-H-50A. Inlet/Outlet: 50mm.
View More
3 Inch AODD pump (DN80 mm)Flow have two types:568L/min and 1041L/min. Pump body materials:CS,Aluminum, PP,SUS, PVDF.
View More
3 inch electric operated diaphragm pump there are four models: EODD-80, EODD-H-80, EODD-80A, EODD-H-80A. A meaning is large flow.
View More

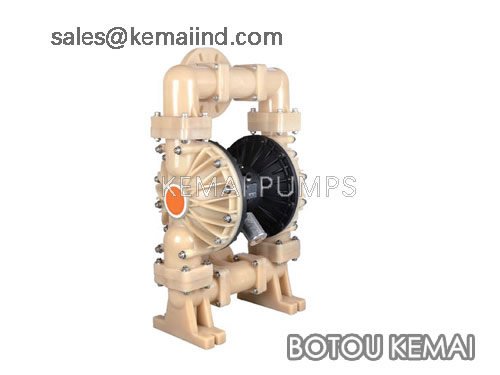

4 Inch Diaphragm Pump Air Operated（DN100mm）,Model: AODD-100. Flow:150 gpm(568 lpm). Materials:CS,Aluminum, PP,SUS, SUS 304, SUS 316,SUS 316L, PVDF.
View More
4 inch electric diaphragm pump Max.flow 245 LPM. Max.Pressure 4 bar and 7 bar. materials: Cast Steel, SG iron, Aluminum, PP, SUS304, SUS 316, SUS 316L , PVDF.
View More

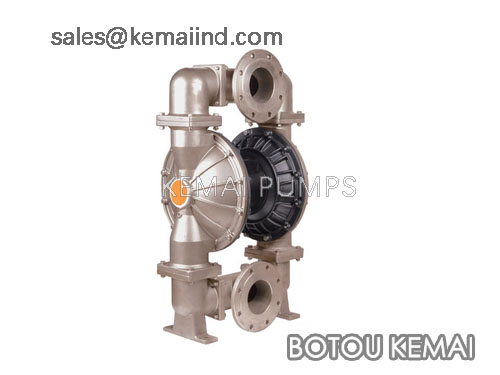

5 Inch Air Operated Diaphragm Pump DN125 mm. Materials:CS,Aluminum, PP,SUS, SUS 304, SUS 316,SUS 316L, PVDF.
View More

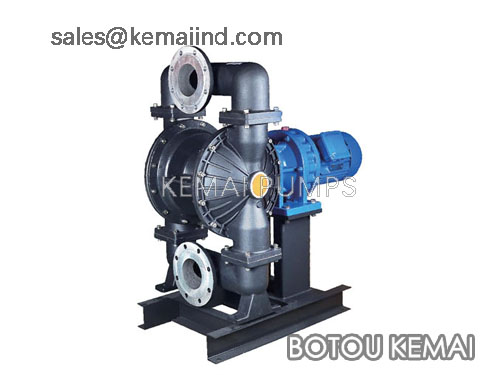

5 Inch Electric Operated Diaphragm Pump Max.flow 480 LPM. Max.Pressure 4 bar and 7 bar. Materials: Cast Steel, SG iron, Aluminum, PP, SUS304, SUS 316, SUS 316L , PVDF.
