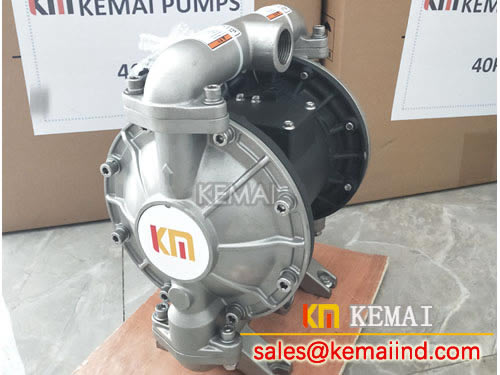

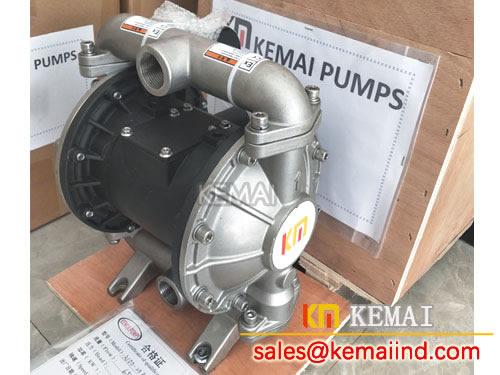

Stainless Steel Diaphragm Pump manufacturer and supplier from China. Stainless steel diaphragm pump model AODD-S series is an air operated diaphragm pump.
AODD-10 3/8 inch 3/8″
AODD-15 1/2 inch 1/2″

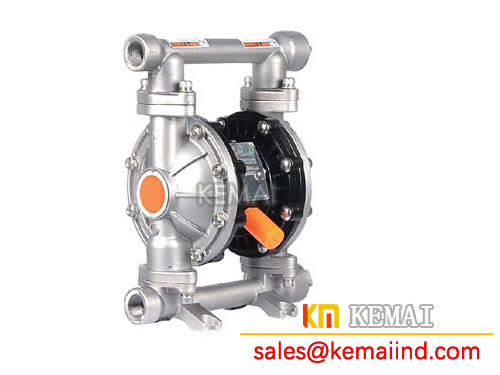

AODD-25 1 inch 1″
AODD-40 1.5 inch 1.5″

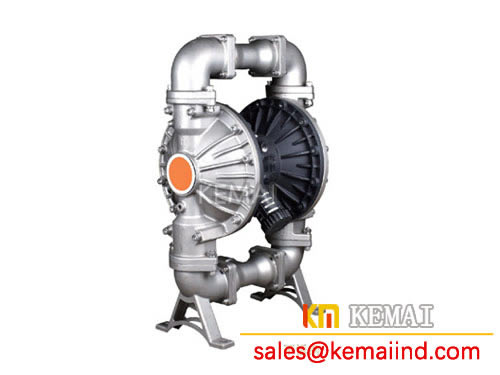

AODD-50 2 inch 2″
AODD-65 2.5 inch 2.5″

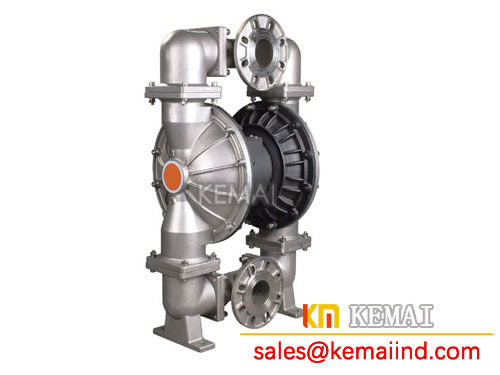

AODD-80 3 inch 3″
AODD-100 4 inch 4″
AODD-125 5 inch 5″
1. Peanut butter, mashed potatoes, hops, syrup.
2. Paint, gum, pigment and glue.
3. Tile, porcelain, glaze paste.
4. Abrasive, etchant, cleaning oil and dirt.
5. Flammable and volatile liquid.
6. Sewage and mortar.
7. Strong acid, strong base, liquid.
| Model | Inlet/Outlet
Calibre SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
| AODD-10 | 10 mm (3/8″) | 22 | 70 | 7 | 1/4″ |
| AODD-15 | 15 mm (1/2″) | 22 | 70 | 7 | 1/4″ |
| AODD-20 | 20 mm (3/4″) | 57 | 70 | 7 | 1/4″ |
| AODD-25 | 25 mm (1″) | 57 | 70 | 7 | 1/4″ |
| AODD-25A | 25 mm (1″) | 116 | 84 | 8.4 | 1/2″ |
| AODD-32 | 32 mm (1.2″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40 | 40 mm (1.5″) | 151 | 84 | 8.4 | 1/2″ |
| AODD-40A | 40 mm (1.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50 | 50 mm (2″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-65 | 65 mm (2.5″) | 378.5 | 84 | 8.4 | 1/2″ |
| AODD-50A | 50 mm (2″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80 | 80 mm (3″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-100 | 100 mm (4″) | 586 | 84 | 8.4 | 1/2″ |
| AODD-80A | 80 mm (3″) | 1041 | 84 | 8.4 | 3/4″ |
| AODD-125 | 125 mm (5″) | 1041 | 84 | 8.4 | 3/4″ |
