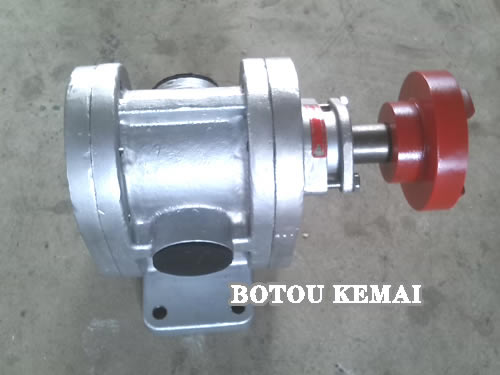

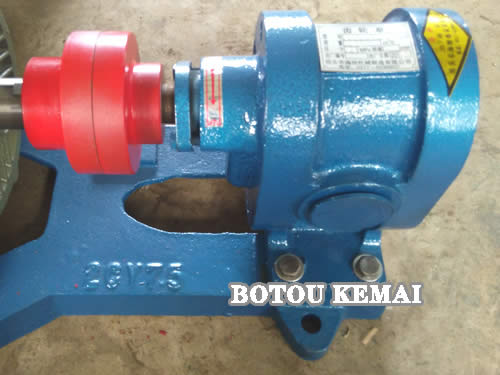

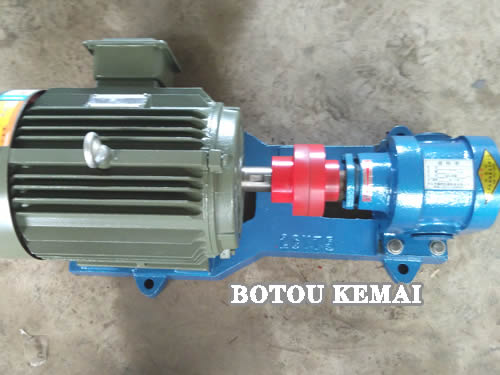

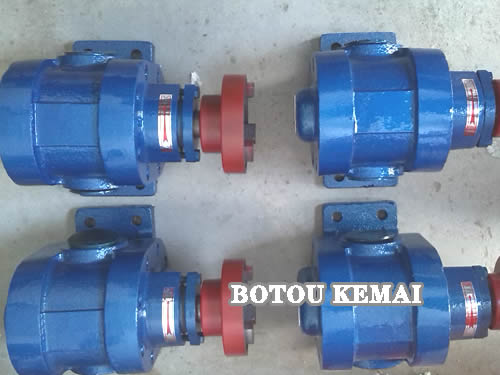

2CY gear pump inlet and outlet are threaded links. Maximum pressure 2.5mpa. Pump material: cast iron or stainless steel.
Model:2CY-1.08/2.5 ;2CY-2.1/2.5;2CY-3/2.5;2CY-4.2/2.5;2CY-7.5/2.5;2CY-12/2.5
| Model | Flow | Speed r/min |
Head Mpa |
Npshr m |
efficiency η % |
Motor | ||
| m3/h | L/min | KW | Model | |||||
| 2CY-1.08/2.5 | 1.08 | 18 | 1420 | 2.5 | 9.5 | 58 | 2.2 | Y100L1-4 |
| 2CY-2.1/2.5 | 2.1 | 35 | 1420 | 2.5 | 9.5 | 58 | 3 | Y100L2-4 |
| 2CY-3/2.5 | 3 | 50 | 1440 | 2.5 | 9.5 | 59 | 4 | Y112M-4 |
| 2CY-4.2/2.5 | 4.2 | 70 | 1440 | 2.5 | 9.5 | 59 | 5.5 | Y132S-4 |
| 2CY-7.5/2.5 | 7.5 | 125 | 1440 | 2.5 | 9.5 | 63 | 7.5 | Y132M-4 |
| 2CY-12/2.5 | 12 | 200 | 1460 | 2.5 | 9.5 | 63 | 15 | Y160L-4 |
