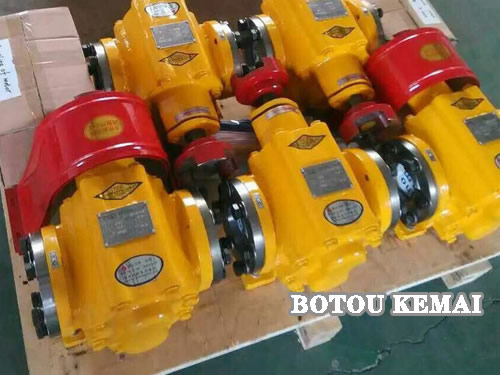

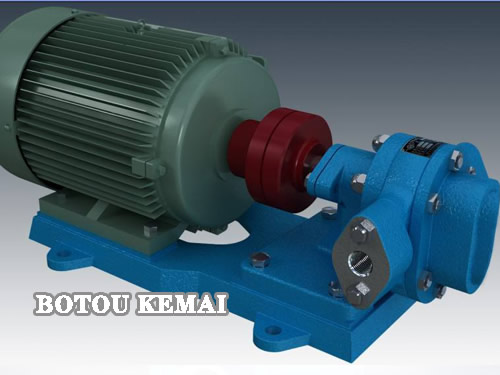

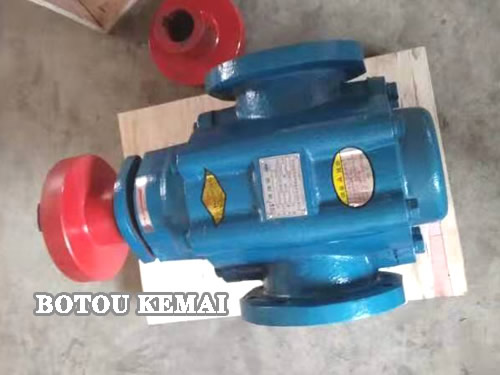

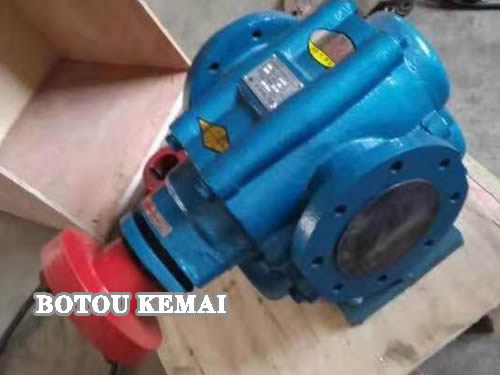

Dirty oil transfer gear pump gear made of alloy steel.It has strong hardness and long service life of transfer dirty oil.Electric Dirty oil pump inlet and outlet have 1″ 2″ 3″ 4″.
| Model | In/Out mm |
Flow | Head
MPa |
Speed | Motor | ||
| m³/h | L/min | KW | Model | ||||
| DGP－18.3 | G3/4″ | 1.1 | 18.3 | 1.45 | 1500 | 1.5 | Y90L－4 |
| DGP－33.3 | 2.0 | 33.3 | 1500 | 2.2 | Y100L1-4 | ||
| DGP－55 | G1″ | 3.3 | 55 | 0.33 | 1500 | 1.5 | Y90L－4 |
| DGP－83.3 | G1½” | 5.0 | 83.3 | 1500 | 2.2 | Y100L1-4 | |
| DGP－125 | Φ50 | 7.5 | 125 | 0.60 | 1000 | 4.0 | Y132M1-6 |
| DGP－167 | 10 | 167 | 0.60 | 1000 | 4.0 | Y132M1-6 | |
| DGP－200 | 12 | 200 | 0.33 | 1500 | 4.0 | Y112M－4 | |
| DGP－250 | 15 | 250 | 0.60 | 1500 | 7.5 | Y132M－4 | |
| DGP－300 | Φ70 | 18 | 300 | 0.36 | 1000 | 5.5 | Y132M2-6 |
| DGP－483.3 | 29 | 483.3 | 1500 | 7.5 | Y132M－4 | ||
| DGP－633 | Φ100 | 38 | 633 | 0.28 | 1000 | 11 | Y160L－6 |
| DGP－960 | 58 | 960 | 1500 | 18.5 | Y180M－4 | ||
