Rotary Gear Pump With Motor 1.1KW~250KW

Home > Gear Pump > Rotary Gear Pump With Motor 1.1KW~250KW

Item No.: None

Rotary Gear Pump With Motor power 1.1KW 2.2KW 3KW 4KW 5.5KW 7.5KW 11KW 15KW 18.5KW 22KW 30KW…Pump material have stainless steel, cast iron. SS 304, SS 316, SS 316L.

Description

Rotary Gear Pump With Motor Feature:

Pump material: cast iron / stainless steel (SS 304 / SS 316 / SS 316L)
Power: 2HP, 3HP, 5HP, 7.5HP, 15HP, 25HP, 50HP, 60HP,75HP, 100HP, 120HP, 150HP…
KW: 1..5KW,2.2KW,4KW,5.5KW,7.5KW,11KW,18.5KW,37KW,45KW,55KW,75KW,90KW,110KW…
220V / 380V / 400V / 415V / 440V
50HZ / 60HZ
Motor type: Common motor / Explosion-Proof Motor
Viscosity: ≤ 1500 cst;
Temp: ≤ 120℃；

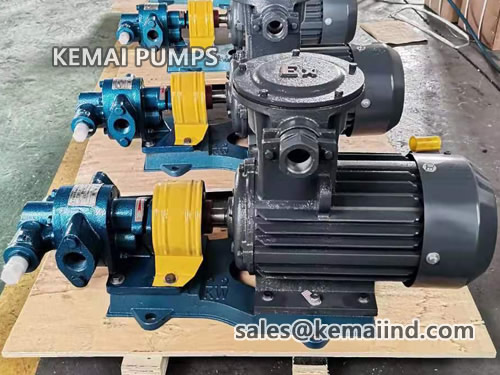

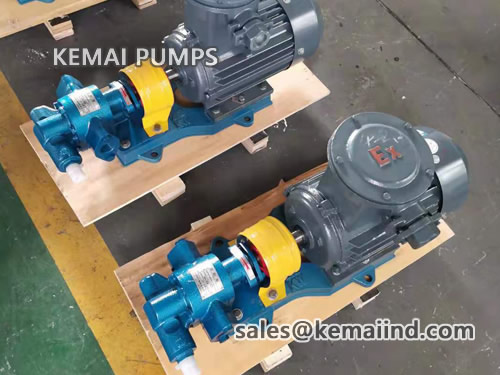

Rotary Gear Pump With Motor

Data Table:

Model	Flow		Speed r/min	outlet pressure Mpa	NPSH r m	Motor
Model	m3/h	L/min	Speed r/min	outlet pressure Mpa	NPSH r m	KW	Motor model
2HP-1 3/4″	1.1	18.3	1400	1.45	5	1.5	Y90L-4
3PH-1 3/4″	2	33.3	1420	1.45	5	2.2	Y100L1-4
2HP-2 1″	3.3	55	1400	0.33	7	1.5	Y90L-4
3PH-2 1.5″	5	83.3	1420	0.33	7	2.2	Y100L1-4
3HP-3 2″	8	135	940	0.33	5	2.2	Y112M-6
5HP 2″	12	200	1440	0.33	5	4	Y112M-4
7.5HP 3″	18	300	960	0.36	5	5.5	Y132M2-6
15HP 3″	29	483.3	1440	0.36	5.5	11	Y160M-4
15HP-1 4″	38	633	970	0.28	6	11	Y160L-6
25HP 4″	58	960	1470	0.28	6.5	18.5	Y180M-4
50HP 6″	72	1200	740	0.6	7	37	Y280S-8
60HP 6″	95	1600	980	0.6	7	45	Y280S-6
75HP 8″	112	1800	740	0.6	7.5	55	Y315S-8
100HP 8″	150	2500	985	0.6	7.5	75	Y315S-6
120HP 10″	170	2850	740	0.6	8	90	Y315L1-8
150HP 10″	230	3800	989	0.6	8	110	Y315L1-6
