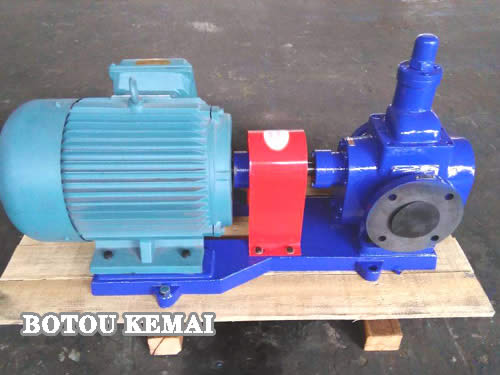

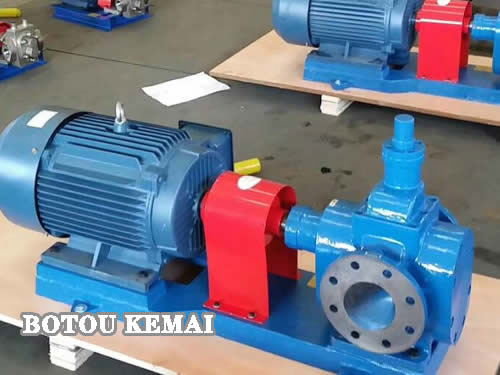

YCB gear pump made of cast iron or stainless steel(SS304 316), pump with safety valve. Flow:0.6~80M3/H Head:0.6~2.5Mpa.This series pump gear is Circular.
Model:- YCB0.6/0.6 YCB1.0/0.6 YCB1.6/0.6 YCB2.5/0.6 YCB3.3/0.6 YCB4/0.6 YCB5/0.6 YCB6/0.6 YCB8/0.6 YCB10/0.6 YCB12/0.6 YCB15/0.6 YCB20/.6 YCB25/0.6 YCB30/0.6 YCB40/0.6

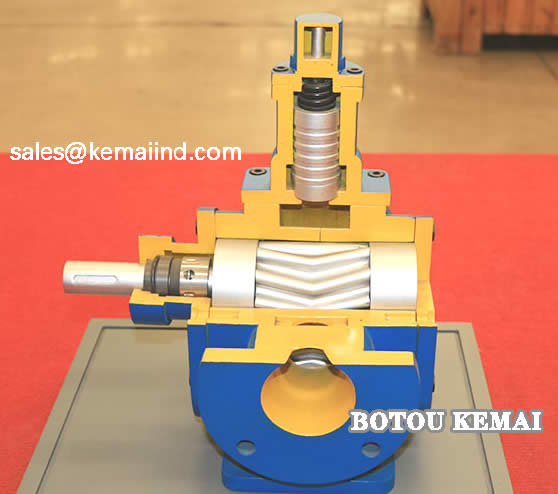

YCB Gear Pump Structure
The pump by the pump body, pump cover, seal, steel sleeve, etc., simple structure, durable.
Gear after heat treatment, good hardness. The parts in the pump are lubricated by the transferred liquid.
The pump has a relief valve.
Pump material: cast iron, cast steel, stainless steel(SS 304 SS 316 SS 316L)
Applicable temperature: less than 120℃
Viscosity: 5 to 1500 CST Lubricating liquid.
Transfer, booster pump.
Fuel oil pump.
Hydraulic pump.
Lubrication pump.
| Model | Flow Q |
Speed r/min |
Head p Mpa |
Efficiency η % |
Motor | ||
| m3/h | Hz | KW | Model | ||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 32 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | |||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | |||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | |||
| YCB0.6-1.6 | 0.6 | 910 | 1.6 | 70 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | |||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | |||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 42 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | |||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | |||
| YCB1.6-1.6 | 1.6 | 940 | 1.6 | 71 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | |||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | |||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 60 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | |||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | |||
| YCB3.3-1.6 | 3.3 | 960 | 1.6 | 72 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | |||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 60 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | |||
| YCB4-1.6 | 4.0 | 960 | 1.6 | 72 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | |||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 61 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | |||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | |||
| YCB8-1.6 | 8.0 | 970 | 1.6 | 75 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | |||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | |||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | |||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 62 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | |||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB10-1.6 | 10.0 | 970 | 1.6 | 76 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | |||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | |||
| 18.0 | 1770 | 60 | 18.5 | Y160L-4 | |||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 68 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | |||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 69 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 70 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 72 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | |||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 72 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | |||
