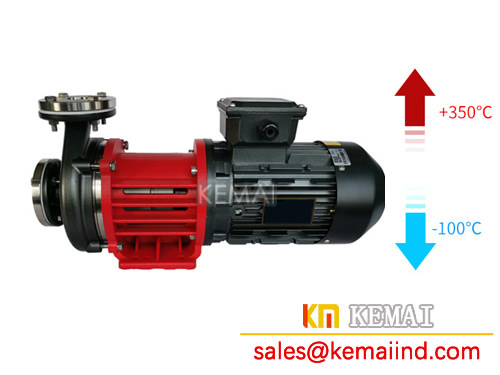

High Temp Magnetic Drive Pump For Hot oil & Water
Item No.: None

High temp magnetic drive pump for hot oil,hot water,thermal oil,glycol. This is a magnetic pump,centrifugal pump.

Description

High Temp Magnetic Pump Application of liquid circulation:

Water, hot oil, ethylene glycol, hydrocarbon solution, silicone oil, gasoline, diesel, kerosene.According to the different liquid, choose different mechanical seal and pump material.

Hot water Hot oil / thermal oil Glycol / silicone oil The highest elevation Maximum working pressure
+5℃~+180℃ +5℃~+350℃ -80℃~+180℃ 1000 M 10bar

High Temp Magnetic Drive Pump For Hot oil & Water Pump Technical Parameter:

Model Inlet Outlet Motor power
(KW)
(Hp) Voltage

(V)

Frequency

(HZ)

Speed

(r/min)

Max Head

(m)

Flow

Max/Use Flow Rate
(L/min )

Pump

Weight

(kg)

HM-10 DN32 DN25 0.75 1 380V or other 50 2760 25 150/120 28
HM-20 DN32 DN25 1.5 2 380V or other 50 2760 28 200/150 30
HM-30 DM50 DN32 22 3 380V or other 50 2760 32 250/188 42
HM-40 DN50 DN32 3 4 380V or other 50 2760 38 300/255 45
HM-50 DN50 DN40 4 5 380V or other 50 2760 45 367/267 60
HM-60 DN50 DN40 45 6 380V or other 50 2760 52 400/285 65
