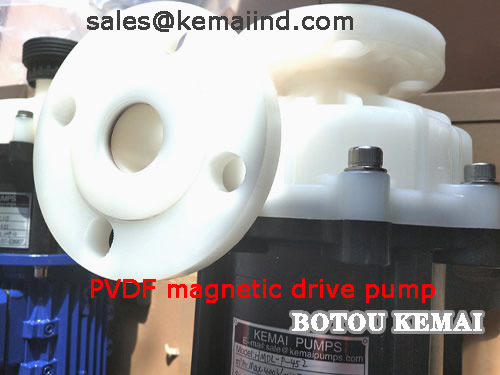

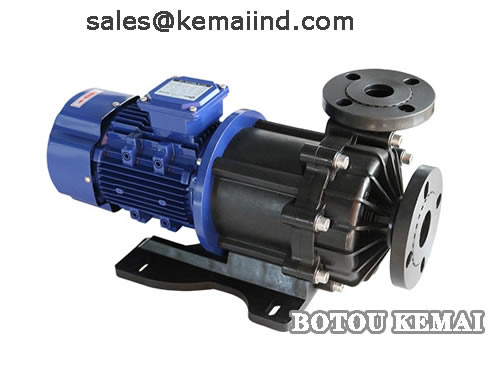

HMDL Model magnetic drive pumps made of PVDF CPVC CFRPP Material . Main use for transfer acid and alkali liquid.
Easy to process as follows:
1:Sulfuric acid, hydrochloric acid, nitric acid, chromic acid.
2:Hydrofluoric acid, phosphoric acid, sodium hypochlorite and other acid base liquid.
3:Applicable to sewage, waste gas, electroplating, coating, circuit board, chemical plant, photovoltaic.
4:Diamond wire, pharmaceutical, printing and dyeing, semiconductor, cleaning equipment and other fields.
5:Suitable for water, sea water and with acid, alkalinity of chemical medium liquid transport.
HMDL(1) – P(2) – S(3) -S(4) – V(5) – 6 (6) – V38(7)
1:Model:HMDL
2:Pump material: F-CFRPP A-CPVC P-PVDF
3:Interface way: S-thread H-flexible pipe
4:Pump shaft: C-CERAMIC T-TITANIUM(Ti) S-SIC
5:Rubber: E-EPDM V-VITON
6:Frequency: 5-50HZ 6-60HZ
8:Voltage:V11:110V/220V/1PH V38:220V/380V/3PH
If you need other voltages, please let us know. Such as:400V/415V/…
| Model | flexible pipe | thread | Max Flow
(L/min) |
Max Head
(M) |
sp. gr. | Motor
(W) |
||||
| Inlet | Outlet | Inlet | Outlet | 50hz | 60hz | 50hz | 60hz | |||
| HMDL-203 | 20 | 20 | G3/4 | G3/4 | 33 | 38 | 3.8 | 5.4 | ＜1.3 | 45w |
| HMDL-204 | 20 | 20 | G1 | G1 | 45 | 52 | 4.6 | 6.5 | ＜1.1 | 65w |
| HMDL-255 | 26 | 26 | G1 | G1 | 60 | 70 | 5.6 | 8.2 | ＜1.2 | 90w |
| HMDL-257 | 26 | 26 | G1 | G1 | 86 | 97 | 6.7 | 9.7 | ＜1.1 | 180w |
| HMDL-258 | 26 | 26 | G1 | G1 | 120 | 130 | 8.6 | 11.6 | ＜1.3 | 260w |
| Model | Inlet | Outlet | Max Flow
(L/min) |
Max Head
(M) |
sp. gr. | Motor
(KW) |
||
| 50hz | 60hz | 50hz | 60hz | |||||
| HMDL-440 | G1.5 | G1.5 | 280 | 280 | 12.5 | 11.5 | ＜1.3 | 0.55KW |
| HMDL-441 | G1.5 | G1.5 | 330 | 320 | 18 | 19 | ＜1.3 | 0.75KW |
| HMDL-452 | G2 | G1.5 | 400 | 400 | 23 | 22 | ＜1.3 | 1.5KW |
| HMDL-453 | G2 | G1.5 | 500 | 500 | 24 | 22.5 | ＜1.3 | 1.2KW |
| HMDL-455 | G2 | G1.5 | 600 | 600 | 29 | 31 | ＜1.3 | 3.7KW |
