Plastic Submersible Pump pipe dia 1 inch, Power:100W 0.14hp; Main use for Aquarium fish tanks, garden fountains, water crafts, water cooling air fans, mechanical cooling equipment, etc.
Pump body:Plastic;
Impeller:Plastic;
Motor:Closed,externally ventilated;
Insulation class:B(Class F if required);
Protection class:IP68;
Duty:Continuously rated;
Mechanical seal:Φ12 ceramic steatite/graphite;
The normal power standard is 220V 50HZ single phase.
Three phase 220V/380V/50HZ; 220V/440V/60HZ;
Single phase 230V,240V,127V,110V,115V / 60HZ models are available on request.

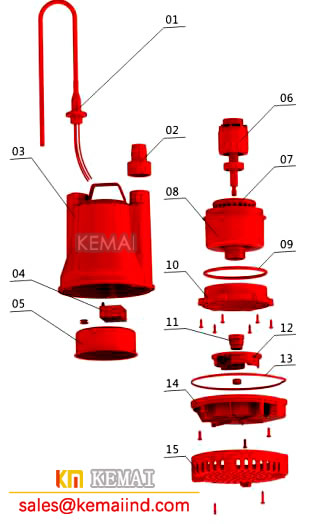

| 01 Power Cable | 02 Connector | 03 Plastic cover | 04 Capacitor | 05 End Cover |
| 06 Rotor | 07 Stator | 08 Front Cover | 09 O-ring | 10 Fixed ring for Motor |
| 11 Seal | 12 Impeller | 13 O-ring | 14 Diffuser | 15 Suction Base |
